Removal [03/2019 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  2. REMOVE VACUUM SENSOR ASSEMBLY
    NOTE:
    • Electrostatic discharge.

      Damage to or destruction of electrical components.

      • Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
      • For additional information see:

        Refer to PRECAUTION [03/2019 - ]

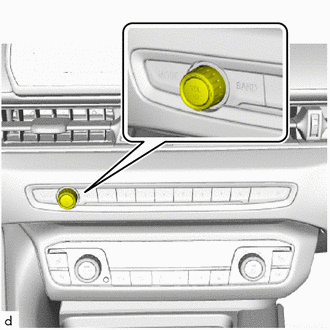

    1. Turn the START-STOP button (engine switch) off.

      HINT:

      Pressing and holding the AUDIO button changes the power source mode to IG OFF.

      GTY945804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

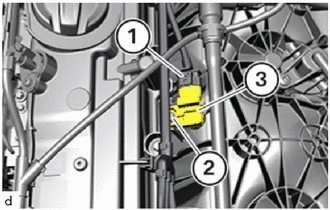

    2. Unlock plug connection (1) and disconnect.
      GTY946395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Loosen T25 bolt (2).
    4. Remove the vacuum sensor assembly (3).
