Installation [03/2019 - ]: Procedure

  1. INSTALL STEERING PAD SWITCH ASSEMBLY

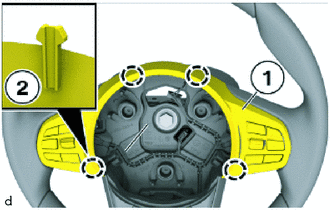

    1. Carefully clip in the steering pad switch assembly (1) at the latch mechanisms (2).
      GTY944972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect connectors and lock.
    3. Tighten T25 bolt on the rear side of the steering wheel.

      Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)

      HINT:

      Use the same procedure for the opposite side.

  2. INSTALL TRANSMISSION SHIFT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. INSTALL HORN BUTTON ASSEMBLY

    Refer to INSTALLATION [07/2020 - ]
