Components [03/2019 - ]

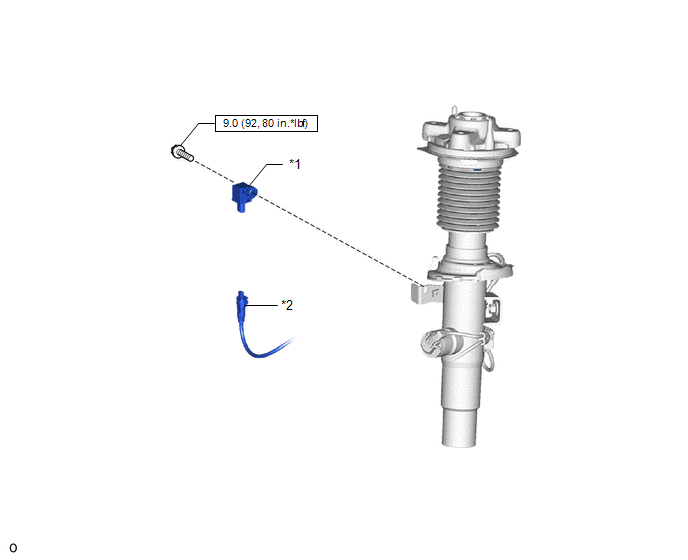

Fig 1: Front Acceleration Sensor Replacement Components With Torque Specifications
GTY877937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ACCELERATION SENSOR ASSEMBLY *2 CONNECTOR
N.m (kgf/cm, ft.lbf): Specified torque - -
