Installation [03/2019 - ]: Procedure

  1. INSTALL INTAKE MASS AIR FLOW METER SUB-ASSEMBLY

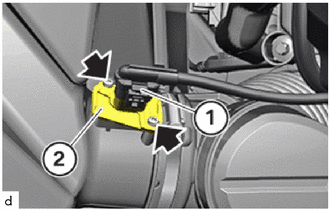

    1. Insert and install the intake mass air flow meter sub-assembly (2).
      GTY946187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten T20 screws (arrows).

      Torque: 1.4 N*m (14 kgf*cm, 12 in.*lbf)

    3. Connect connectors (1) and lock.

      HINT:

      The connector (1) must engage audibly.

  2. PERFORM INITIALIZATION
    1. Connect the diagnosis system to the vehicle and enter the following menus:

      Vehicle management / Service functions / Drive / Engine electronics / Reset adaptations / ABL Reset adaptation values
