Installation [03/2024 - ]: Procedure
- INSTALL ECM BRACKET
Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)
- INSTALL NO. 2 ECM BRACKET
Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)
- INSTALL ECM

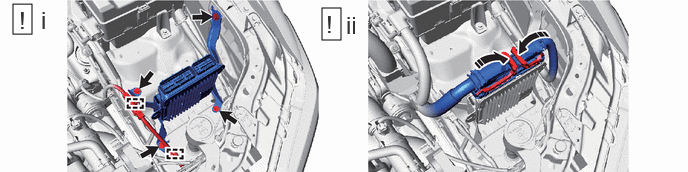

Install in this Direction - - - Install the ECM with the 4 bolts.
Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)
NOTE:If the ECM has been struck or dropped, replace it.
- Connect the 2 ECM connectors and rotate the 2 levers to lock them.NOTE:
- When connecting the ECM connectors, make sure that the connecting parts of the ECM connectors are free of dirt, water and other foreign matter.
- Be sure to securely connect the ECM connectors.
- Install the ECM with the 4 bolts.
- INSTALL TCM (except Manual Transmission)
- for 1Motor-HEV Model:
Refer to PROCEDURE - Step 2
- for Gasoline Model:
Refer to PROCEDURE - Step 2
- for 1Motor-HEV Model:
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
- for 1Motor-HEV Model:
Refer to PROCEDURE - Step 5
- for Gasoline Model:
Refer to PROCEDURE - Step 5
- for 1Motor-HEV Model:
- VEHICLE IDENTIFICATION NUMBER (VIN) REGISTRATION
- for 1Motor-HEV Model:
Refer to PROCEDURE - Step 1
- for Gasoline Model:
Refer to PROCEDURE - Step 1
- for 1Motor-HEV Model:
- ECU CONFIGURATION
Refer to ECU CONFIGURATION [12/2023 - ]
- UPDATE ECU SECURITY KEY
Refer to UPDATE ECU SECURITY KEY [12/2023 - ]
- PERFORM INITIALIZATION
Refer to WORK PROCEDURE [03/2024 - ]
- INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL
Refer to WORK PROCEDURE [03/2024 - ]
HINT:
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
