Removal [12/2023 - ]: Procedure

Refer to REMOVAL [12/2023 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

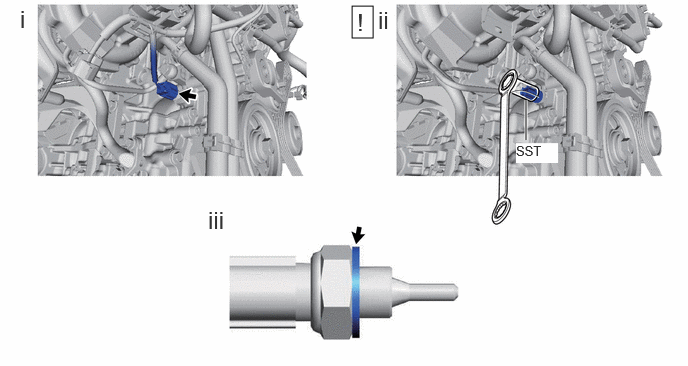

   1. Disconnect the engine oil temperature sensor connector.
   2. Using SST, remove the engine oil temperature sensor from the cylinder block sub-assembly.
      • SST: 09817-33191
      NOTE:

      If the engine oil temperature sensor has been struck or dropped, replace it.

   3. Remove the gasket from the engine oil temperature sensor.
