Inspection [12/2023 - ]: Procedure

  1. INSPECT KNOCK CONTROL SENSOR
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      c1-1 (EKNK) - c1-2 (KNK1) 25°C (77°F) 120 to 280 kΩ kΩ

      If the result is not as specified, replace the knock control sensor.

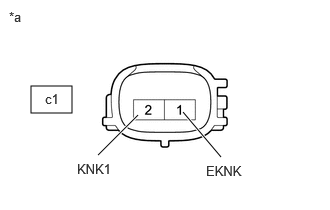

      GTY1193952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Knock Control Sensor)
