Wiring Diagrams: Wiring Diagram

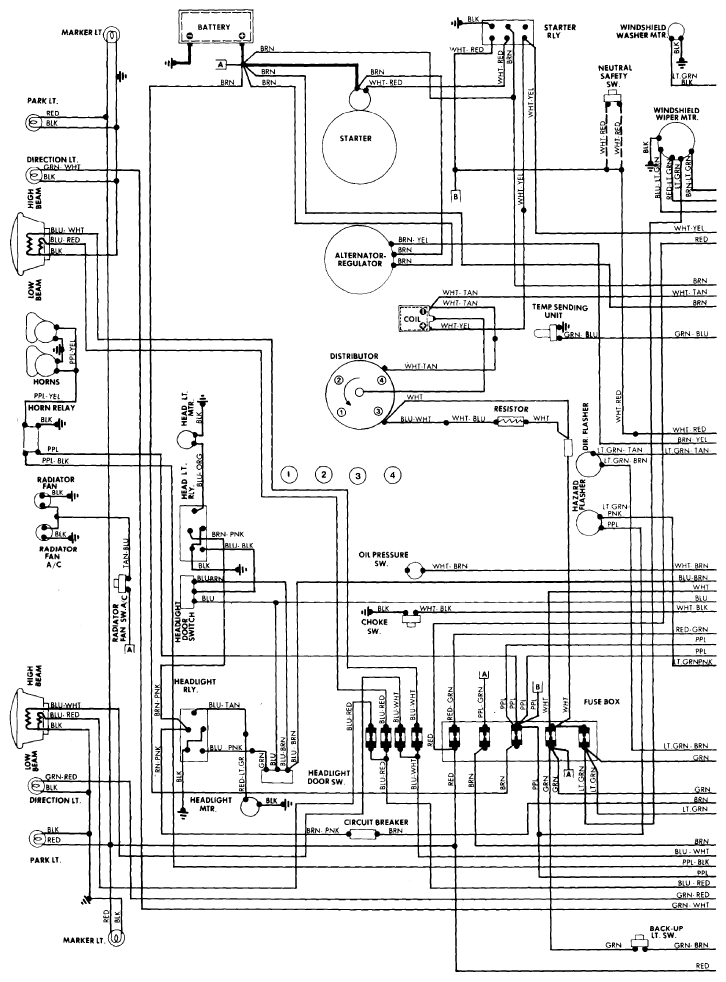

Fig 1: Wiring Diagram - TR7 (1 of 2)
G09303587Courtesy of NOT AVAILABLE

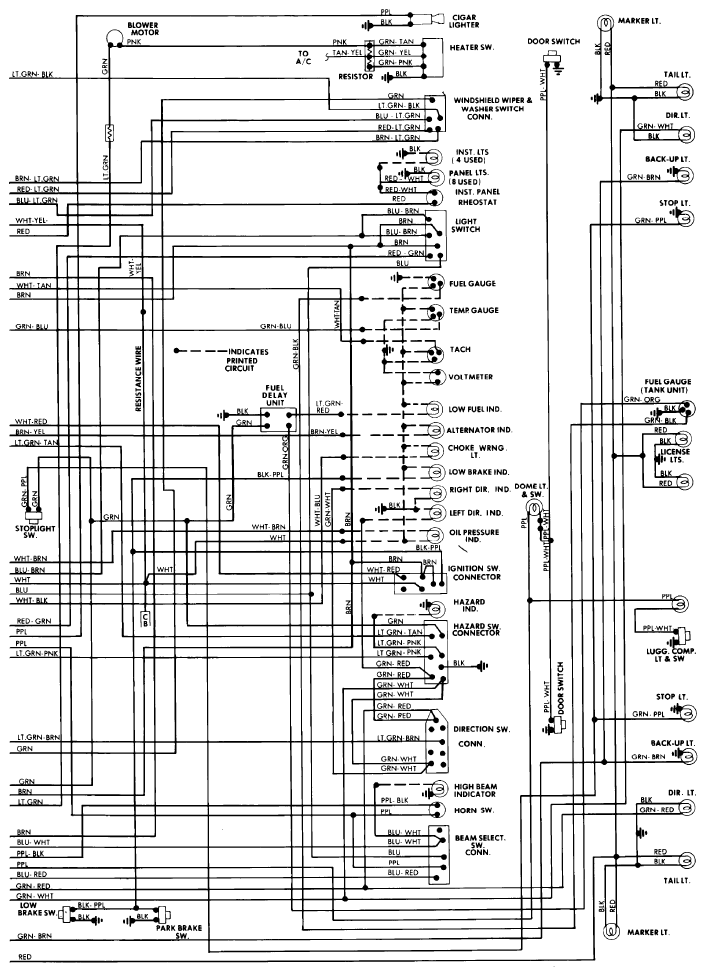

Fig 2: Wiring Diagram - TR7 (2 of 2)
G09303588Courtesy of NOT AVAILABLE
