T-Box Cover And Case Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

1. Disconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
2. Remove multimedia head unit. Refer to MULTIMEDIA HEAD UNIT REMOVAL AND INSTALLATION/REPLACEMENT
3. Remove T-box battery. Refer to T-BOX BATTERY REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

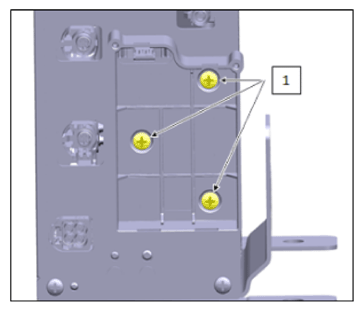

4. Remove 3 screws (1).

   Torque: 0.35 Nm

   Courtesy of VINFAST, LLC

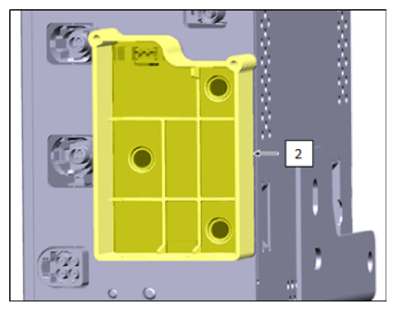

5. Carefully remove the T-box cover and casing (2) from the MHU so that the flat connector is not damaged

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following. All fasteners must be tightened to torque specification!
2. Install T-box battery. Refer to T-BOX BATTERY REMOVAL AND INSTALLATION/REPLACEMENT
3. Install multimedia head unit. Refer to MULTIMEDIA HEAD UNIT REMOVAL AND INSTALLATION/REPLACEMENT
4. Reconnect the 12V battery negative terminal. Refer to 12V BATTERY NEGATIVE CABLE DISCONNECTION/CONNECTION
