Front Side Door Window Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Remove front side door water deflector. Refer to FRONT SIDE DOOR WATER DEFLECTOR REMOVAL AND INSTALLATION/REPLACEMENT
2. Remove front side door window inner sealing strip. Refer to FRONT SIDE DOOR WINDOW INNER SEALING STRIP REPLACEMENT

   Courtesy of VINFAST, LLC

   WARNING: Crushing by moving parts
   Failure to follow specified procedures may result in death or serious injury due to movement of the window regulator.

   • Secure the component against uncontrolled movement.
   • Always use personal protective equipment (PPE)
   • Ensure vehicle is correctly disabled/powered down to prevent unexpected motion or activation of components.

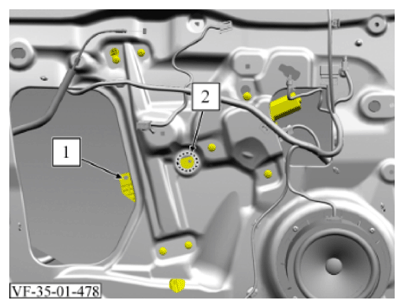

3. Position the front side door window regulator (1) in a way that the bolt of the door window is accessible through the opening (2).

   Courtesy of VINFAST, LLC

4. Secure the door window pane against falling down.

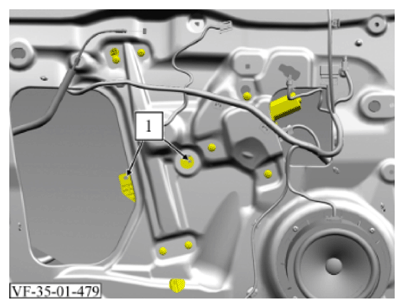

5. Remove 2 bolts (1).

   Torque: 8 Nm

   Courtesy of VINFAST, LLC

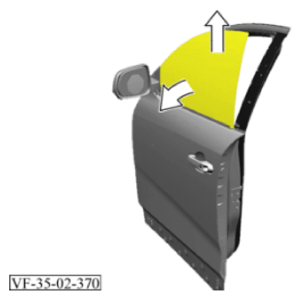

6. Angle the front side door window (1) outward and remove it from the door by lifting it upward.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install front side door window inner sealing strip. Refer to FRONT SIDE DOOR WINDOW INNER SEALING STRIP REPLACEMENT
3. Install front side door water deflector. Refer to FRONT SIDE DOOR WATER DEFLECTOR REMOVAL AND INSTALLATION/REPLACEMENT
