Front Fender Bracket Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Remove the front bumper fascia guide. Refer to FRONT BUMPER FASCIA GUIDE REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

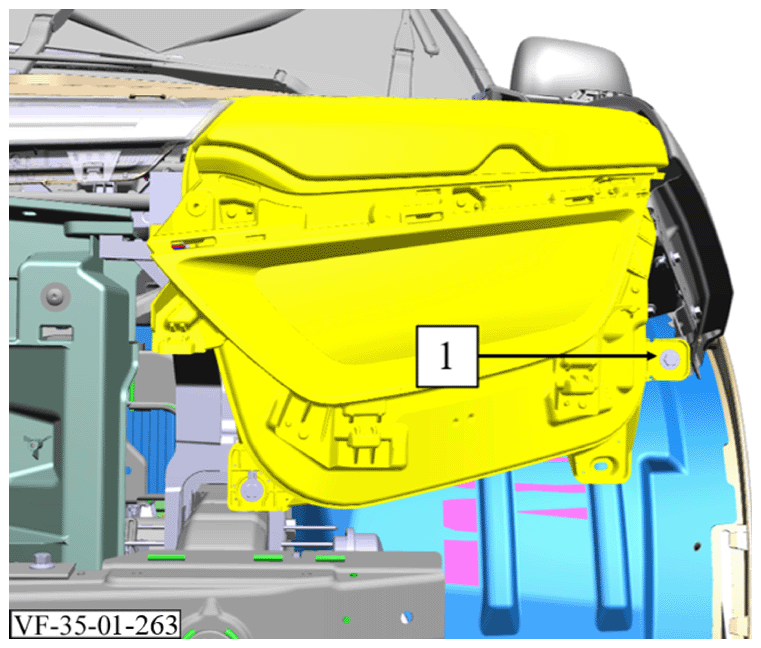

2. Remove bolt (1).

   Torque: 3.3 Nm

   Courtesy of VINFAST, LLC

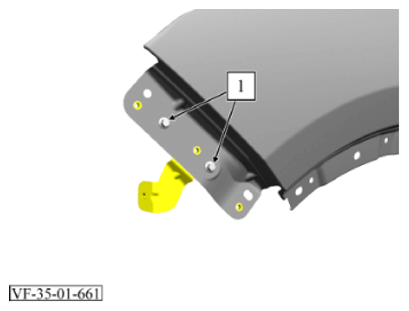

3. Remove 2 bolts (1).

   Torque: 8 Nm

   Courtesy of VINFAST, LLC

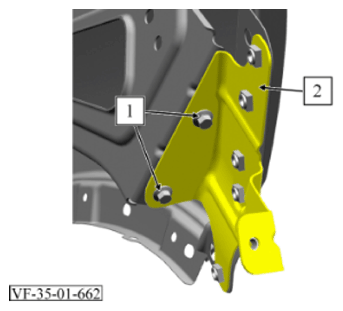

4. Remove 2 bolts (1).

   Torque: 8 Nm

5. Remove front fender bracket (2).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!

2. Install the front bumper fascia guide. Refer to FRONT BUMPER FASCIA GUIDE REMOVAL AND INSTALLATION/REPLACEMENT
