Front Tire Air Deflector Removal And Installation/Replacement

Mobile Repair Possible:  No

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Lift the vehicle. Refer to LIFTING AND JACKING THE VEHICLE
2. Turn the steering.

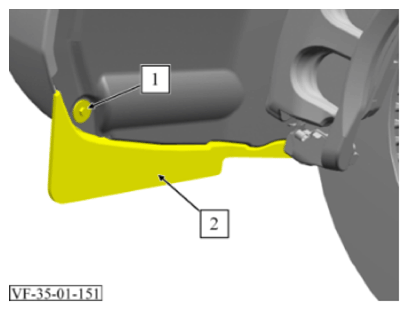

   Courtesy of VINFAST, LLC

   For better illustration, removal is shown with wheels removed.

3. Remove screw (1).

   Torque: 2.60 Nm

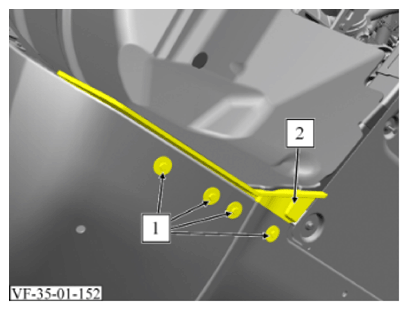

   Courtesy of VINFAST, LLC

   For better illustration, removal is shown with wheels removed.

4. Remove 4 screws (1).

   Torque: 2.60 Nm

5. Push the front wheelhouse liner to the side and remove the front tire air deflector (2).

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.

   All fasteners must be tightened to torque specification!
