Instrument Panel Compartment Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

Courtesy of VINFAST, LLC

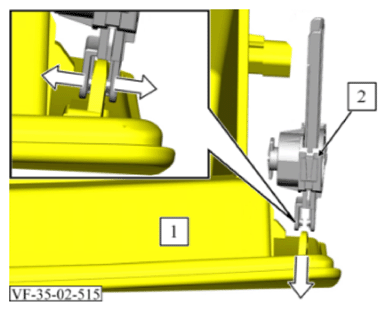

1. Open compartment (1), spread retaining tabs of damper rod (2) and detach from glove compartment (1).

   Courtesy of VINFAST, LLC

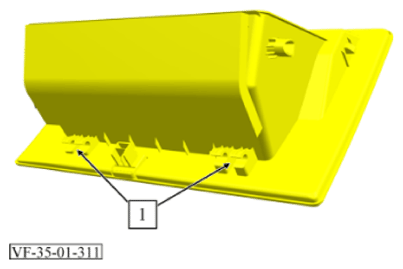

2. Lever both compartment guide pins (1) out of glove compartment housing (2).
3. Open compartment further.

   Courtesy of VINFAST, LLC

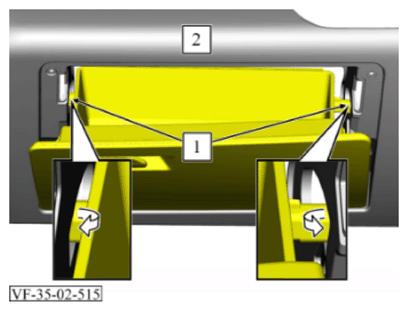

4. Unclip the compartment from the holder (1) and remove it.

Installation Procedure:

1. Installation is the reverse of removal procedure, noting the following.
