Spare Wheel Installation

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Open tailgate.
2. Remove load floor trim panel. Refer to LOAD FLOOR TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT
3. Remove rear compartment floor stowage trim compartment. Refer to REAR COMPARTMENT FLOOR STOWAGE TRIM COMPARTMENT REMOVAL AND INSTALLATION/REPLACEMENT

   Installation Procedure:

   Courtesy of VINFAST, LLC

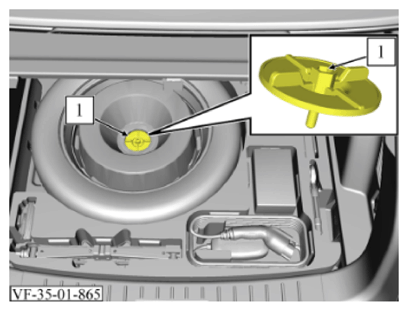

4. Undo the spare tire platen (1)

   Courtesy of VINFAST, LLC

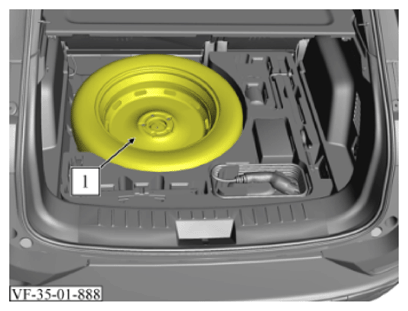

5. Remove the spare wheel (1)

Installation Procedure:

Courtesy of VINFAST, LLC

1. Insert the spare wheel (1).

   Courtesy of VINFAST, LLC

2. Install the tire platen bracket (1).

   Courtesy of VINFAST, LLC

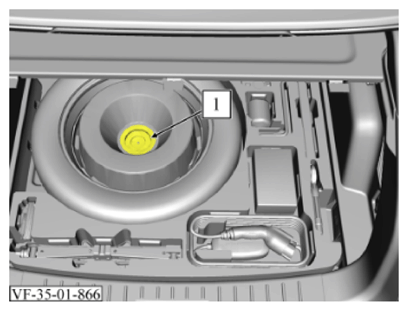

3. Install spare tire platen (1).
4. Install rear compartment floor stowage trim compartment. Refer to REAR COMPARTMENT FLOOR STOWAGE TRIM COMPARTMENT REMOVAL AND INSTALLATION/REPLACEMENT
5. Install load floor trim panel. Refer to LOAD FLOOR TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT
