Front Side Door Window Frame Sealing Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

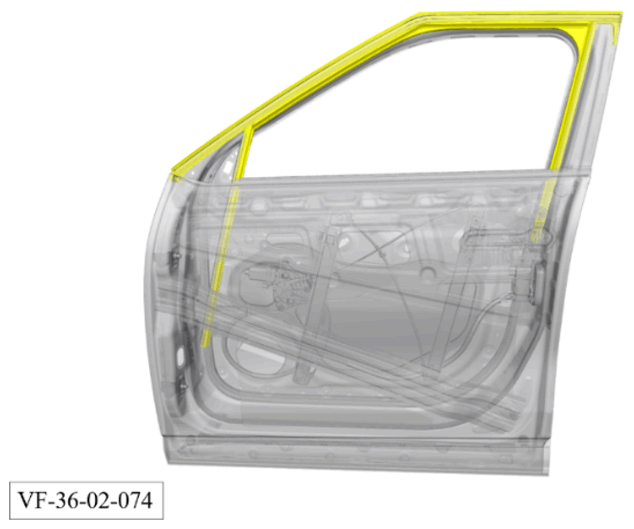

Overview:

G16023728Courtesy of VINFAST, LLC
WARNING: Crushing by moving parts
Failure to follow specified procedures may result in death or serious injury due to movement of the window regulator.
  • Secure the component against uncontrolled movement.
  • Always use personal protective equipment (PPE).
  • Ensure vehicle is correctly disabled/powered down to prevent unexpected motion or activation of components.

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

  1. Remove front side door window. Refer to FRONT SIDE DOOR WINDOW REMOVAL AND INSTALLATION/REPLACEMENT
  2. Remove front side door window inner sealing strip. Refer to FRONT SIDE DOOR WINDOW INNER SEALING STRIP REMOVAL AND INSTALLATION/REPLACEMENT
  3. Remove front side door speaker. Refer to FRONT SIDE DOOR SPEAKER REMOVAL AND INSTALLATION/REPLACEMENT
  4. Remove front side door window frame decorative trim. Refer to FRONT SIDE DOOR WINDOW FRAME DECORATIVE TRIM REMOVAL AND INSTALLATION/REPLACEMENT
  5. Remove front side door B-pillar trim. Refer to FRONT SIDE DOOR B-PILLAR TRIM REMOVAL AND INSTALLATION/REPLACEMENT

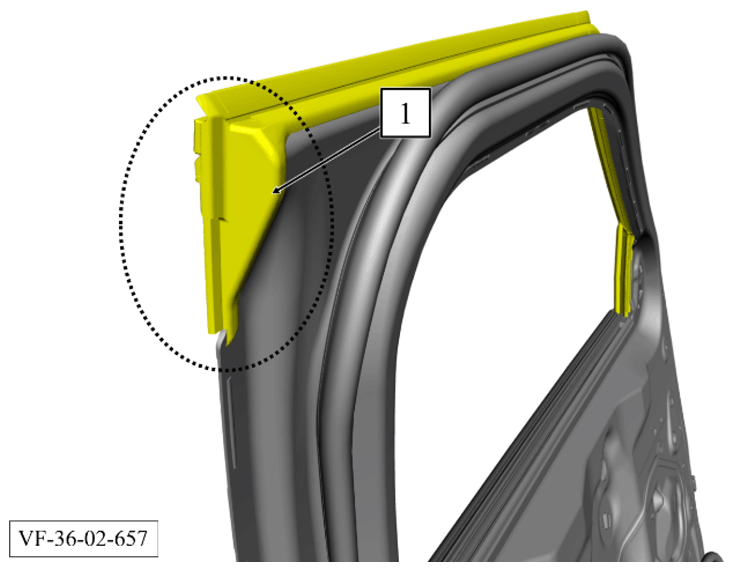

    G16023729Courtesy of VINFAST, LLC
  6. Remove the rear section (1) of the front side door window frame sealing.

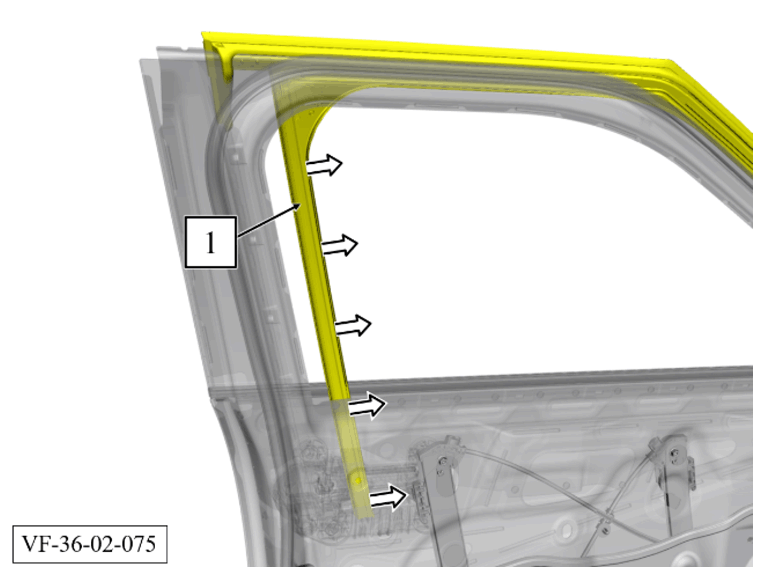

    G16023730Courtesy of VINFAST, LLC
  7. Pull off the window frame sealing (1) in the rear area in the direction of the arrow.

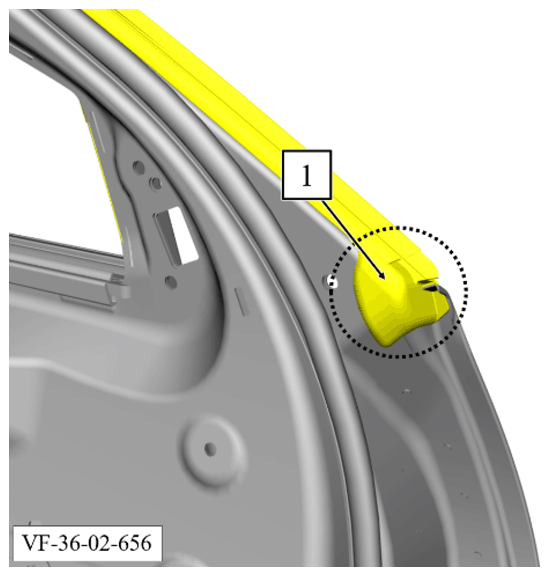

    G16023731Courtesy of VINFAST, LLC
  8. Remove the front section (1) of the front side door window frame sealing.

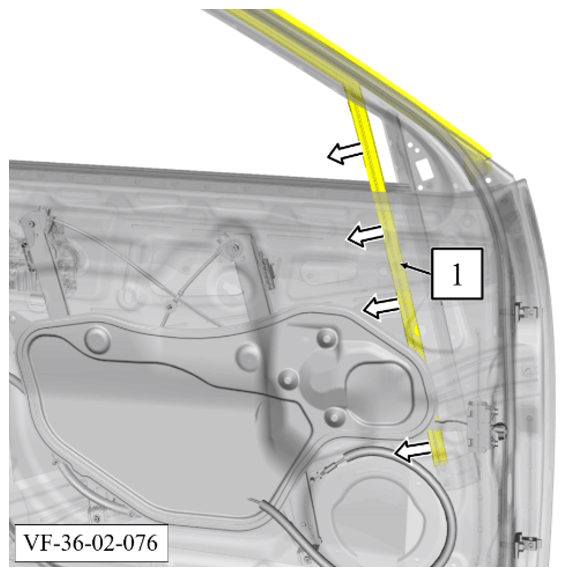

    G16023732Courtesy of VINFAST, LLC
  9. Pull off the window frame sealing (1) in the front area in the direction of the arrow.

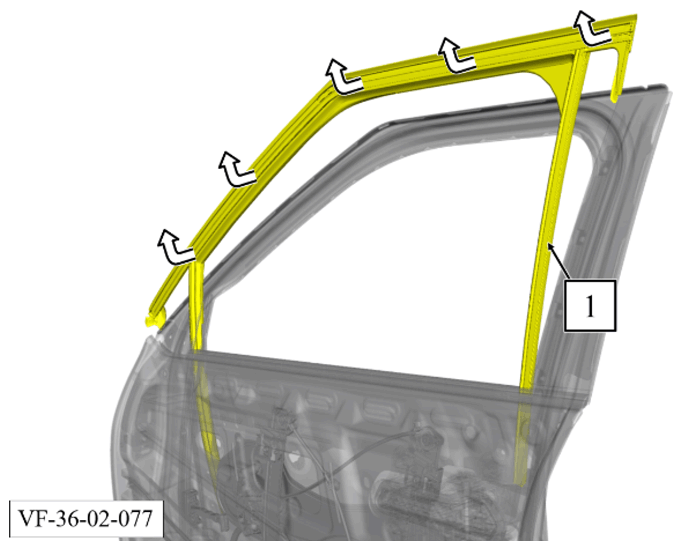

    G16023733Courtesy of VINFAST, LLC
  10. Pull off the window frame sealing (1) in the upper area in the direction of the arrow and remove.

Installation Procedure:

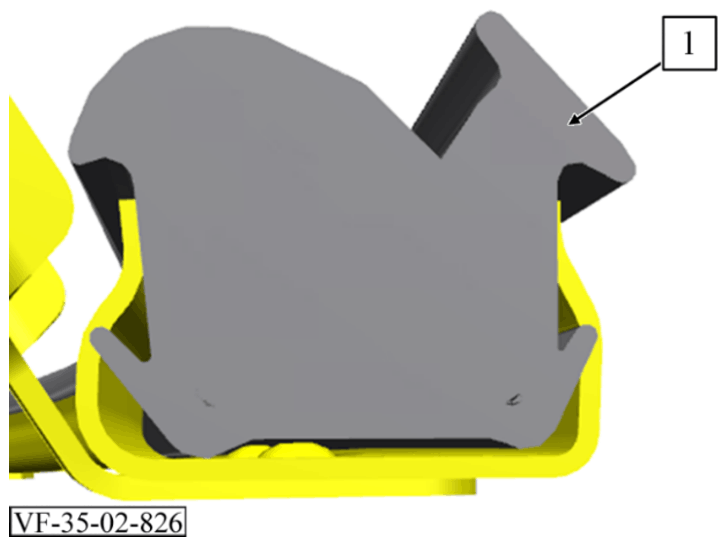

G16023734Courtesy of VINFAST, LLC

Installation note: Front side door window frame sealing (1) must engage all around.

  1. Installation is the reverse of removal procedure, noting the following.
  2. Install front side door window frame decorative trim. Refer to FRONT SIDE DOOR WINDOW FRAME DECORATIVE TRIM REMOVAL AND INSTALLATION/REPLACEMENT
  3. Install front side door speaker. Refer to FRONT SIDE DOOR SPEAKER REMOVAL AND INSTALLATION/REPLACEMENT
  4. Install front side door window inner sealing strip. Refer to FRONT SIDE DOOR WINDOW INNER SEALING STRIP REMOVAL AND INSTALLATION/REPLACEMENT
  5. Install front side door window. Refer to FRONT SIDE DOOR WINDOW REMOVAL AND INSTALLATION/REPLACEMENT
