Front Side Door Window Regulator Motor Removal And Installation/Replacement

Mobile Repair Possible:  Van/Car

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Remove front side door window regulator. Refer to FRONT SIDE DOOR WINDOW REGULATOR REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

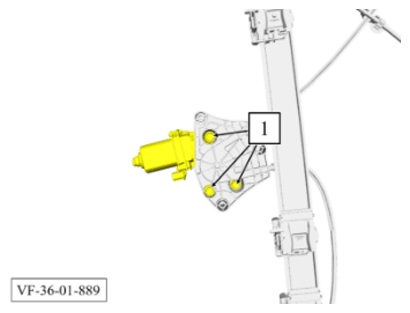

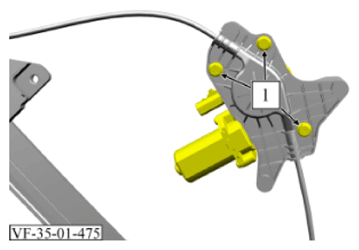

2. Remove 3 screws (1).

   Torque: 5 Nm

   Courtesy of VINFAST, LLC

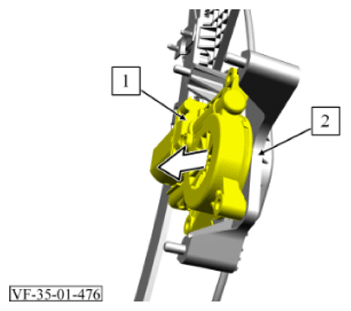

3. Detach and remove motor (1) from window regulator (2).

Installation Procedure:

Courtesy of VINFAST, LLC

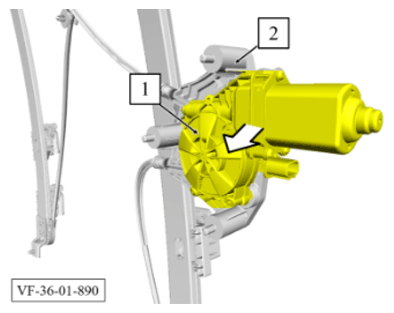

Installation note: Thread and position motor (1) correctly.

1. Installation is the reverse of removal procedure, noting the following. All fasteners must be tightened to torque specification!
2. Install front side door window regulator. Refer to FRONT SIDE DOOR WINDOW REGULATOR REMOVAL AND INSTALLATION/REPLACEMENT
