Spare Wheel Installation

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Open tailgate.
2. Remove load floor trim panel. Refer to LOAD FLOOR TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT
3. Remove rear compartment floor stowage trim compartment. Refer to REAR COMPARTMENT FLOOR STOWAGE TRIM COMPARTMENT REMOVAL AND INSTALLATION/REPLACEMENT

   Installation Procedure:

   Courtesy of VINFAST, LLC

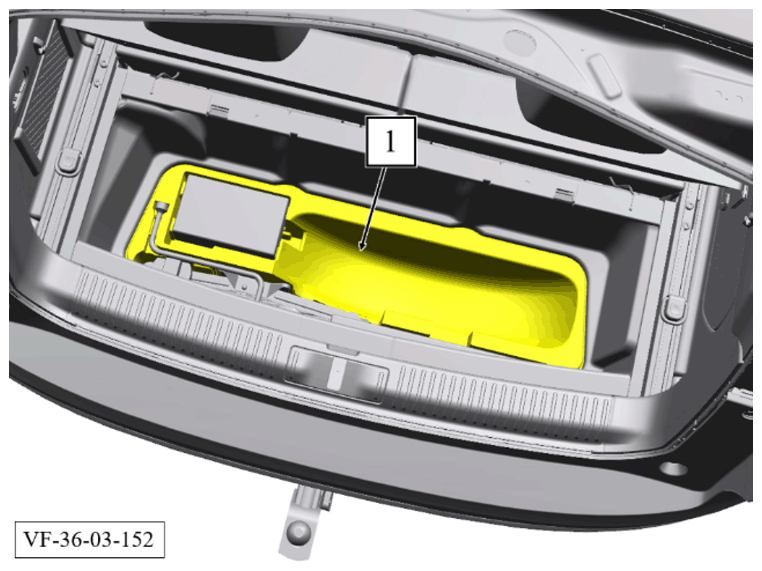

4. Install the new rear compartment floor stowage trim compartment (toolbox) (1).

   Courtesy of VINFAST, LLC

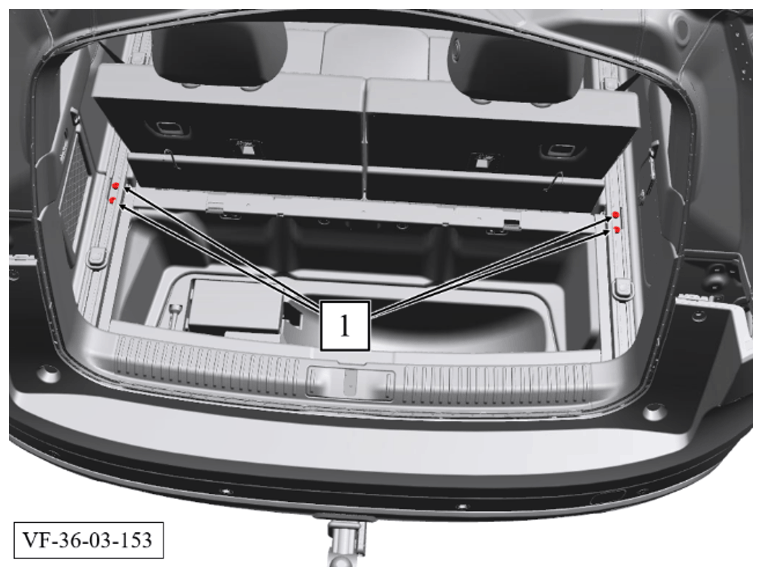

5. Remove 4 bolts (1) from the rear compartment side rails.

   Installation note: Screws must be replaced with longer ones.

   Courtesy of VINFAST, LLC

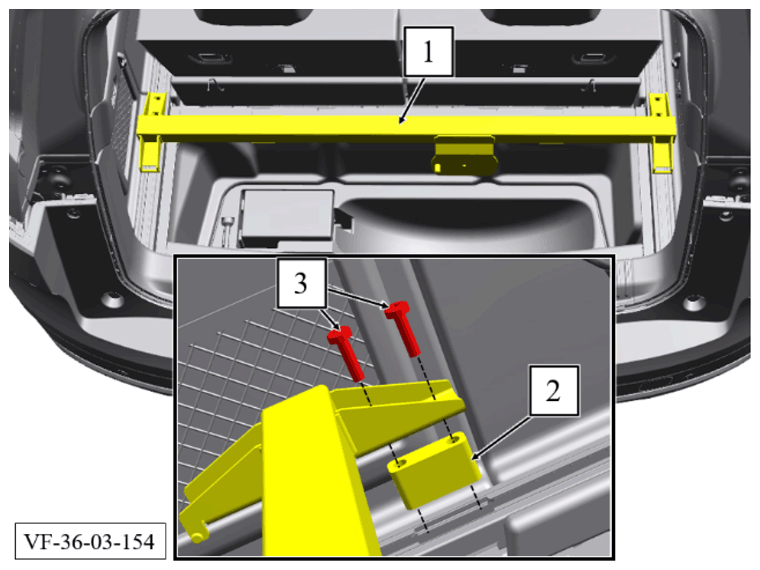

6. Install the spare wheel bracket (1) with spacer (2) and using 4 new longer bolts (3).

   Torque: 30 Nm

   Courtesy of VINFAST, LLC

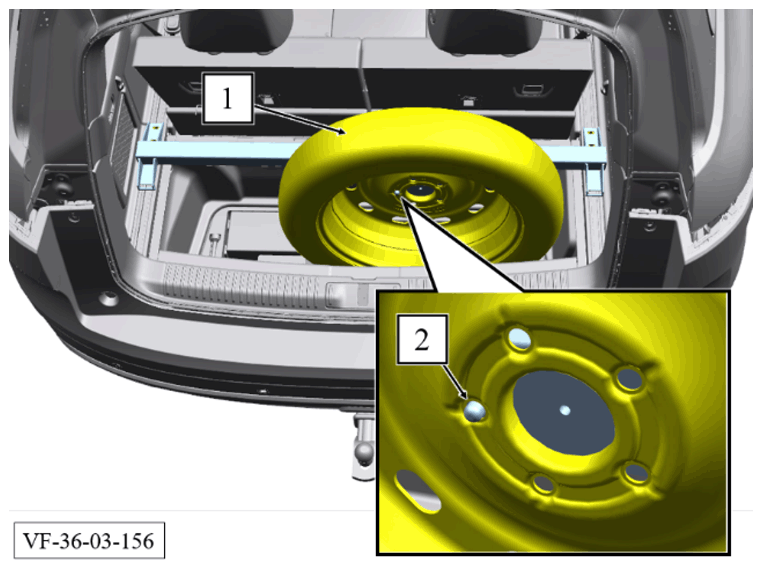

7. Insert and position the spare wheel (1) correctly on the guide pin (2).

   Courtesy of VINFAST, LLC

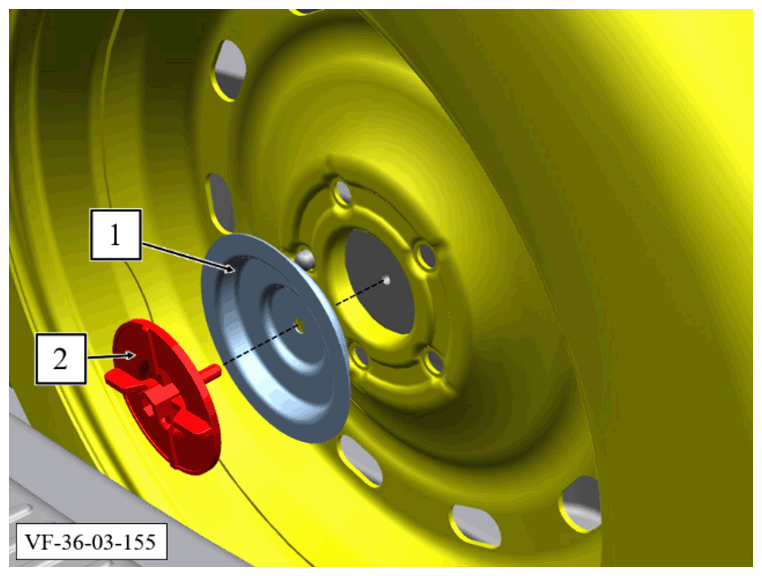

8. Install the tire platen bracket (1).
9. Install and screw in the spare tire platen (2).
