Vehicle Towing Tools Installation

Mobile Repair Possible:  Van/Car

Removal Procedure:

1. Remove Load Floor Trim Panel. Refer to LOAD FLOOR TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT

   Courtesy of VINFAST, LLC

   Type 1

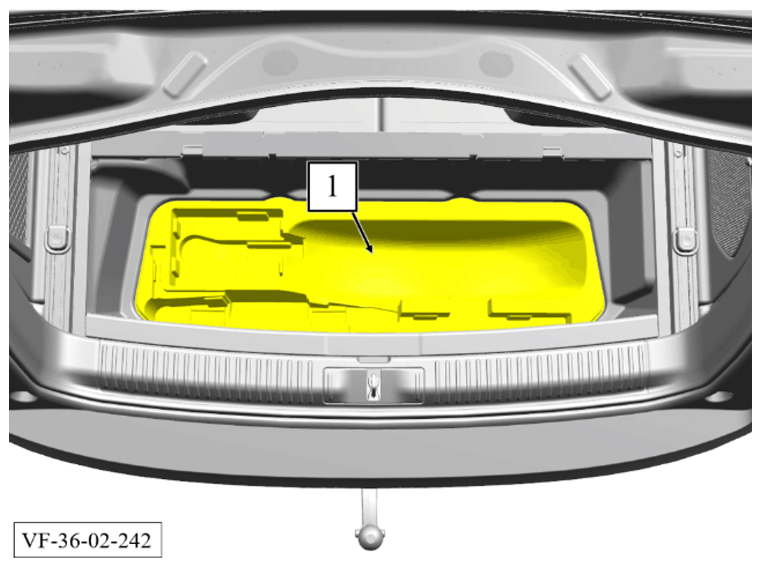

2. Install the vehicle toolbox (1).

   Courtesy of VINFAST, LLC

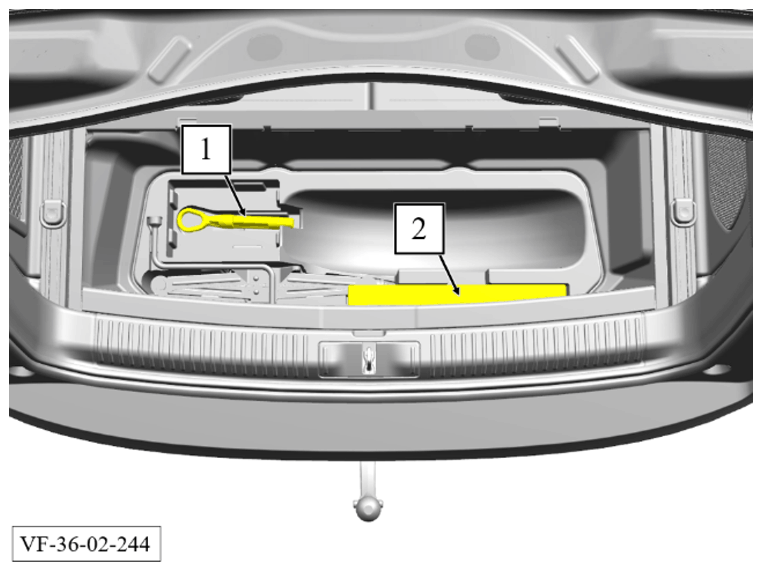

3. Install the towing tools, consisting of the towing eyes (1) and the warning triangle (2).

   Courtesy of VINFAST, LLC

   Type 2

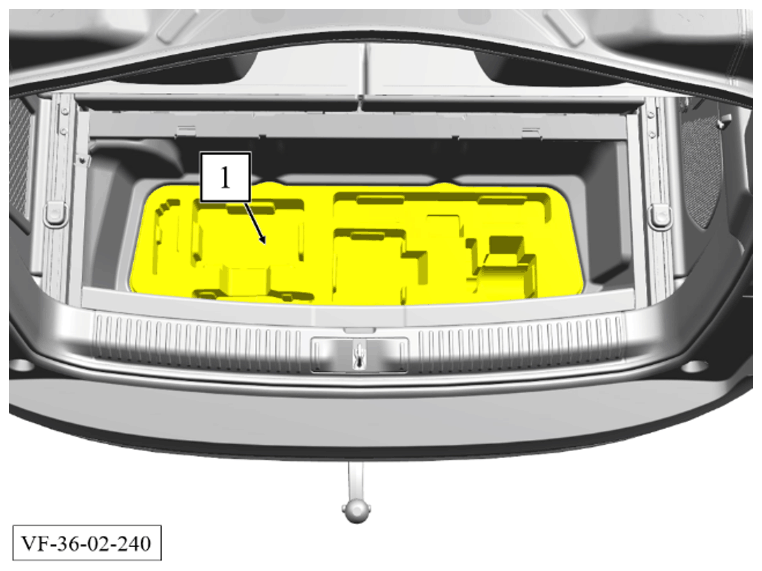

4. Install the vehicle toolbox (1).

   Courtesy of VINFAST, LLC

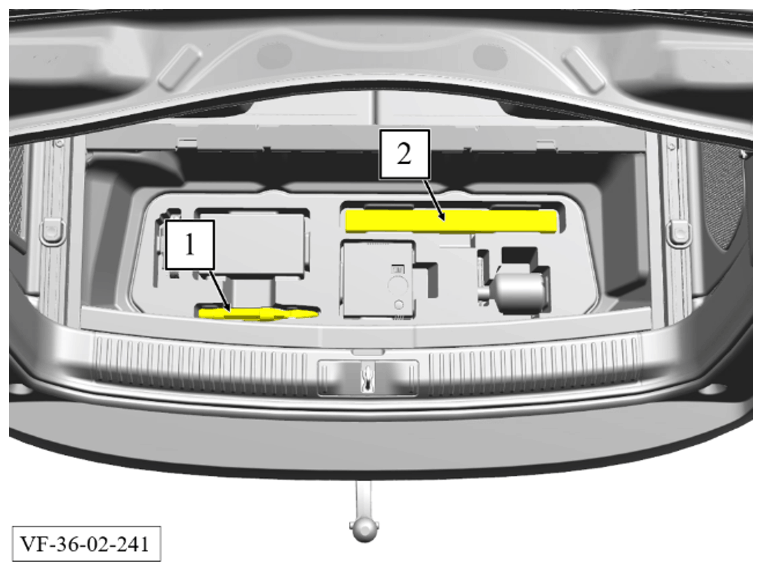

5. Install the towing tools, consisting of the towing eyes (1) and the warning triangle (2).

Installation Procedure:

1. Install the load floor trim panel. Refer to LOAD FLOOR TRIM PANEL REMOVAL AND INSTALLATION/REPLACEMENT
