Control Assembly: Locations

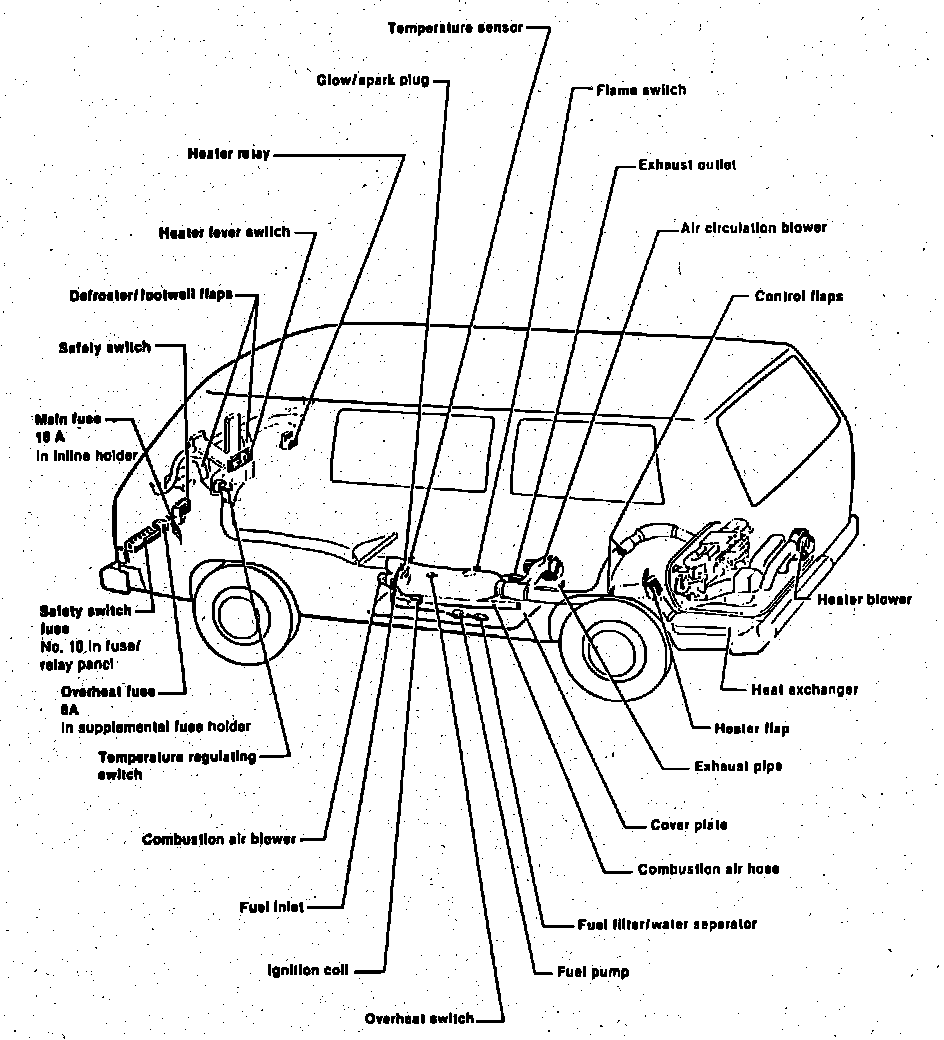

Heater Booster System Components.:
Center Dash Panel
Applicable to: 1981 Vanagon
