Torque Specifications

TORQUE SPECIFICATIONS

Application Ft. Lbs. (N.m)
Gear Box Rubber Mounting Bolts 22 (30)
Tie Rod End Jam Nut 29 (39)
Tie Rod End-to-Steering Arm 22 (30)
Universal Joint Pinch Bolts 22 (30)

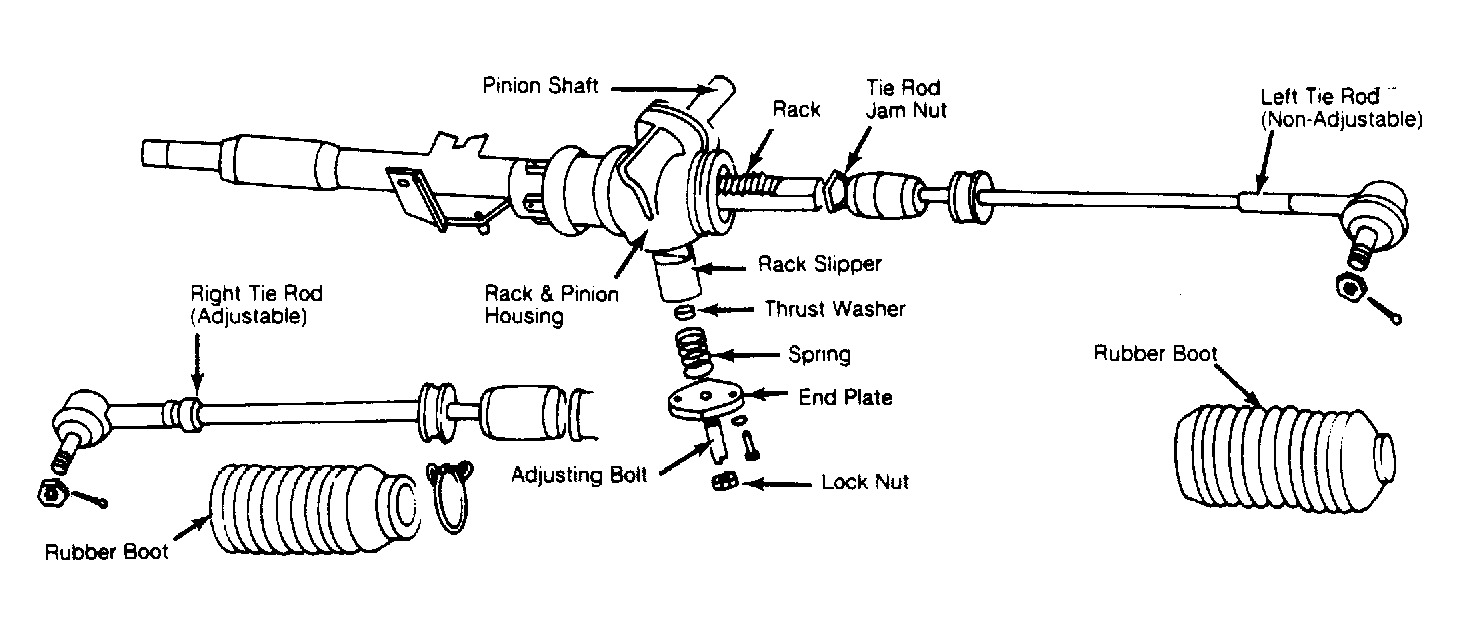

Fig 1: Disassembled View of Rack & Pinion Steering Gear Assembly
G52804
