Cruise Control Systems: Components

COMPONENT LOCATION

Component Location
Control Unit
With CIS-E Fuel Injection Behind center console, in passenger compartment
Without CIS-E Fuel Injection Under instrument panel on passenger side

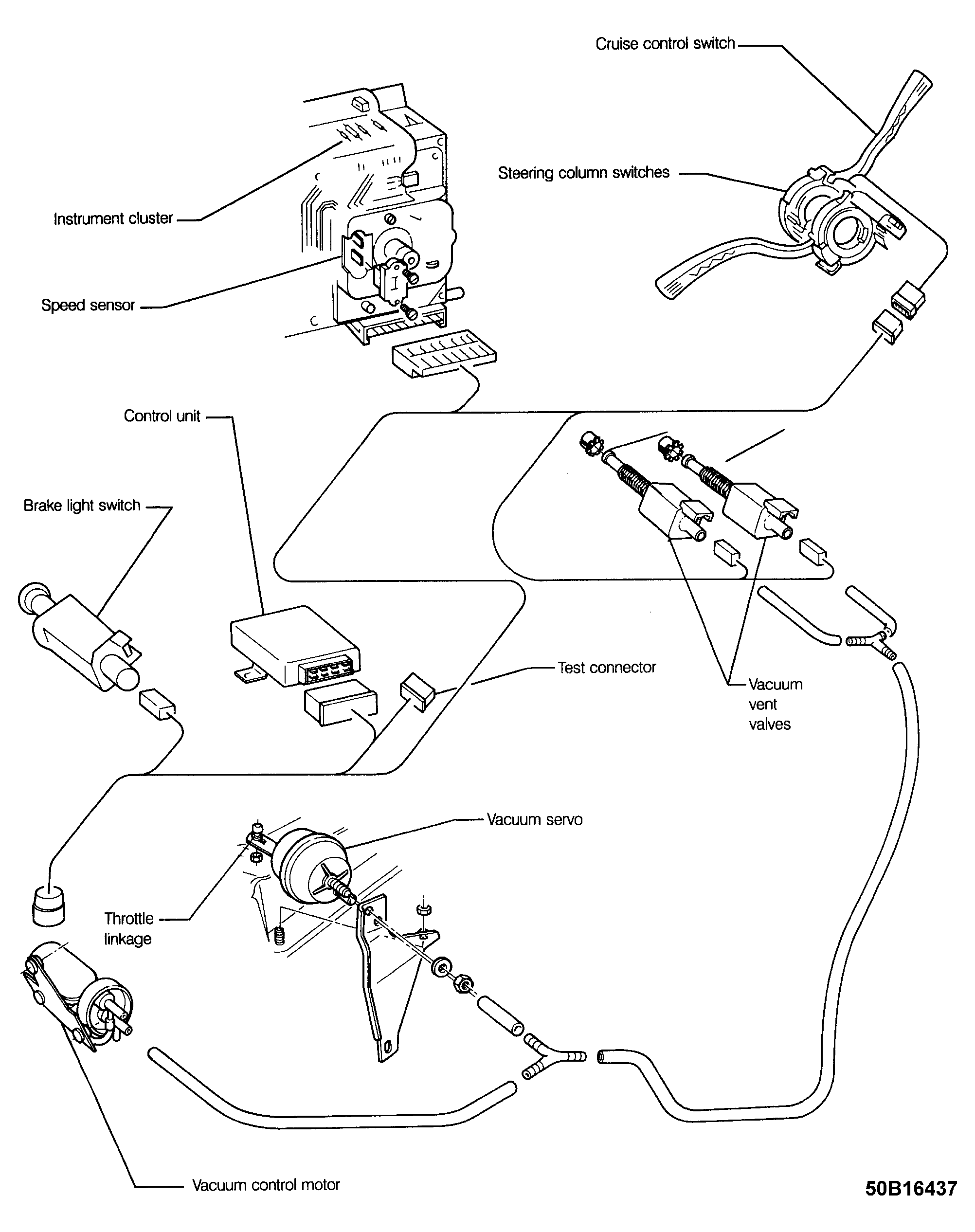

Fig 1: Exploded View of Cruise Control Components
G50B16437
