Radiator Cooling Fan Control Module: Locations

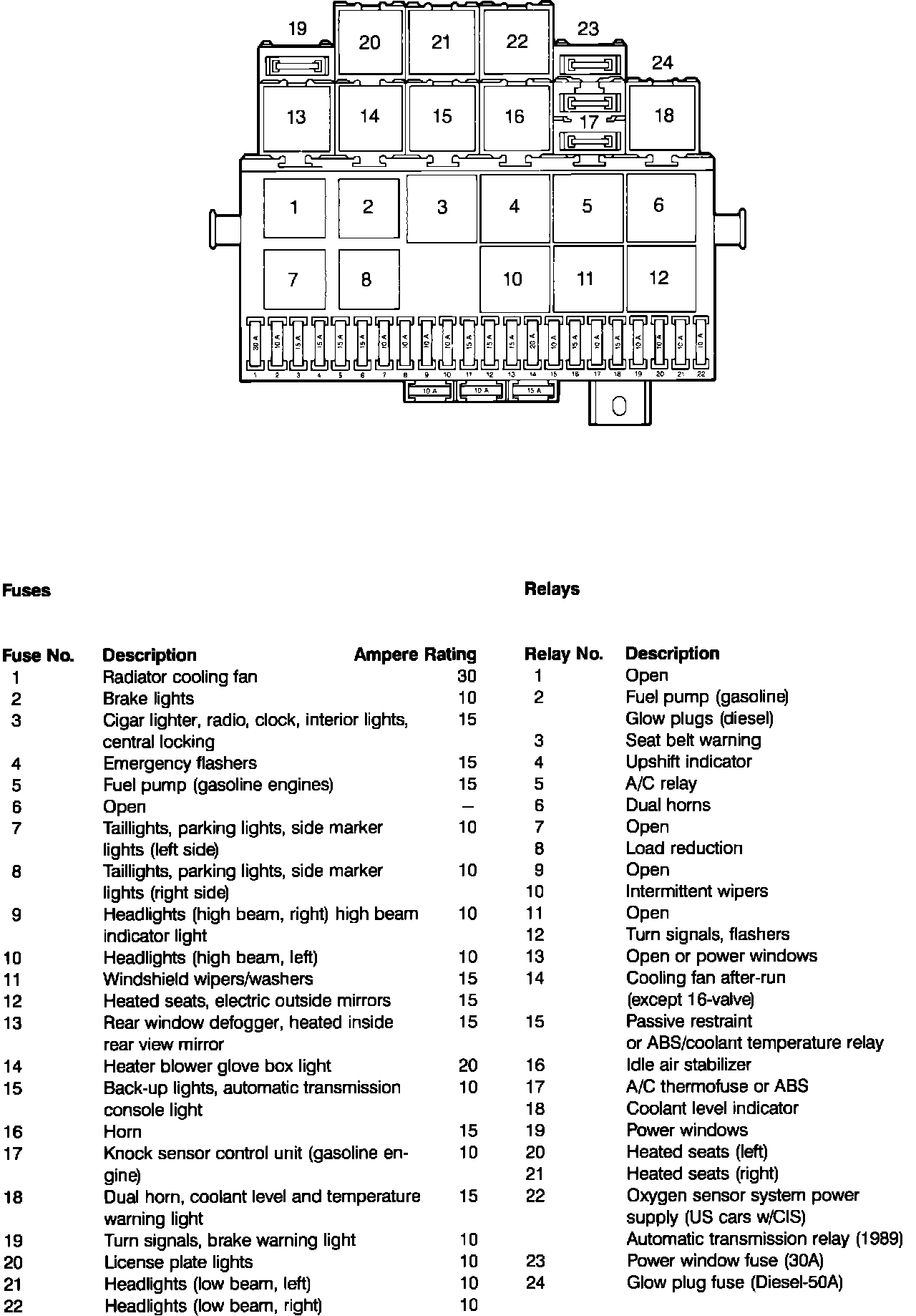

Fig. 53 Fuse/Relay Panel, Jetta:





Cooling Fan After-run Control Unit
Relay 14
On Fuse/Relay Panel
