Transmission Torque Specifications

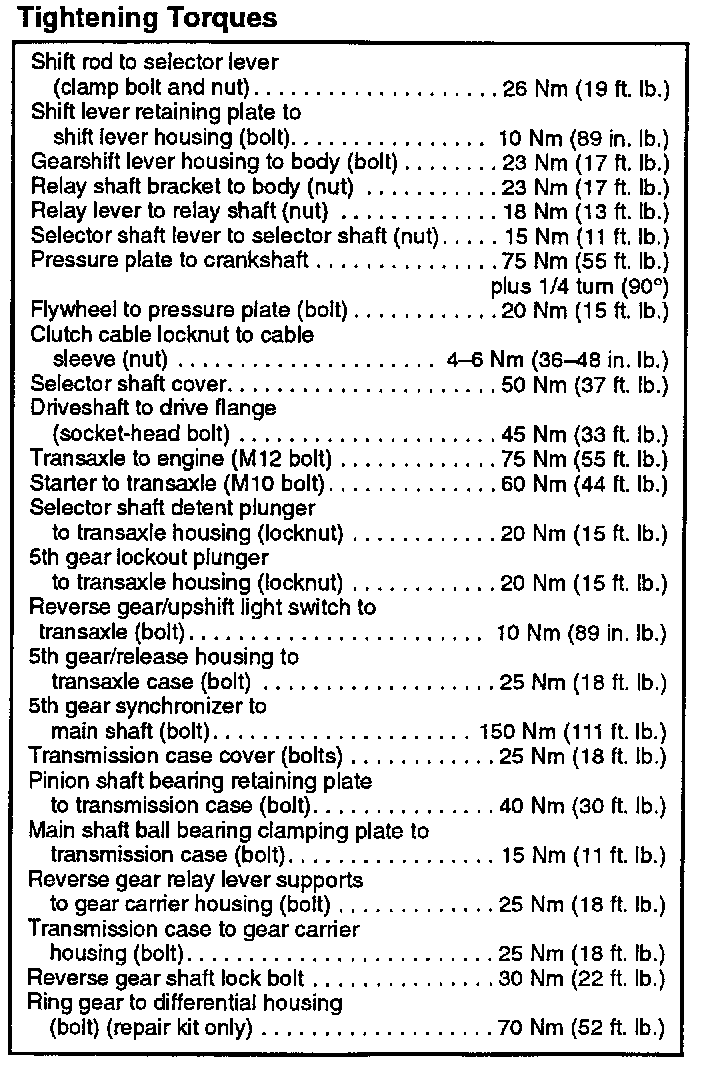

Torque Specifications

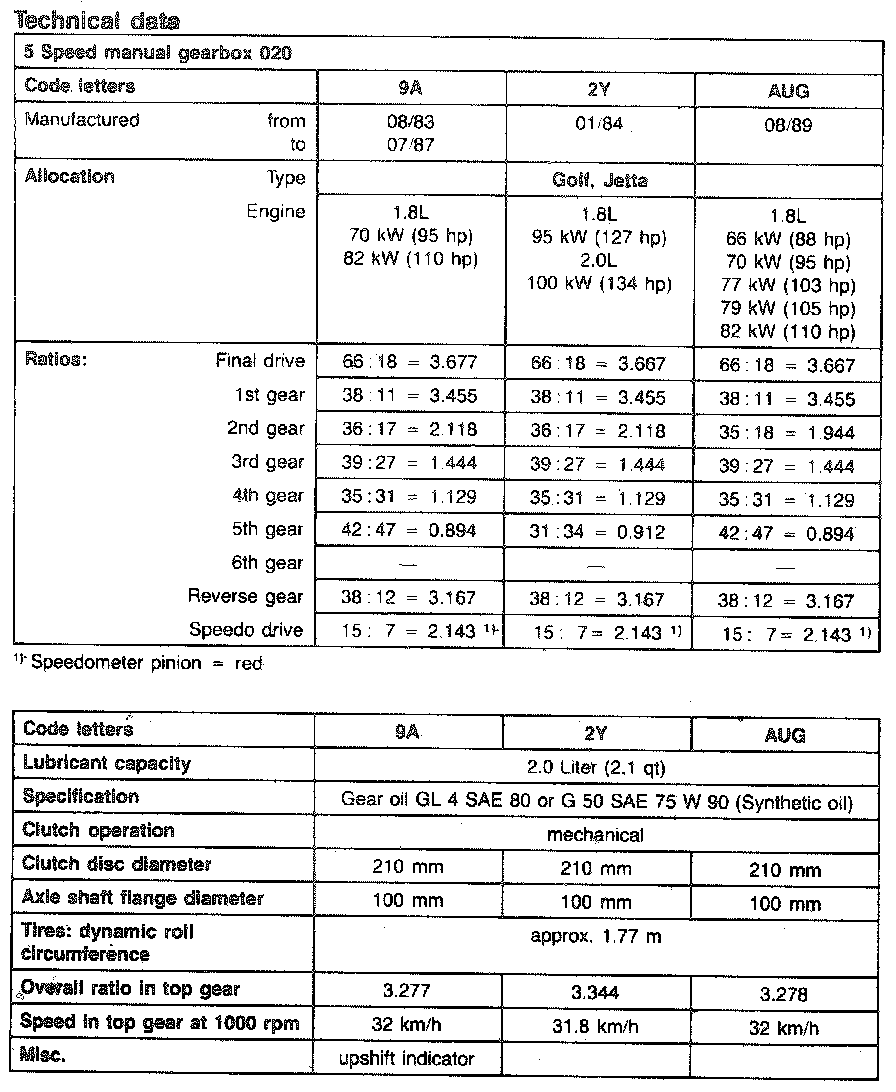

5 Speed Manual Transmission Gearbox Specifications (020):

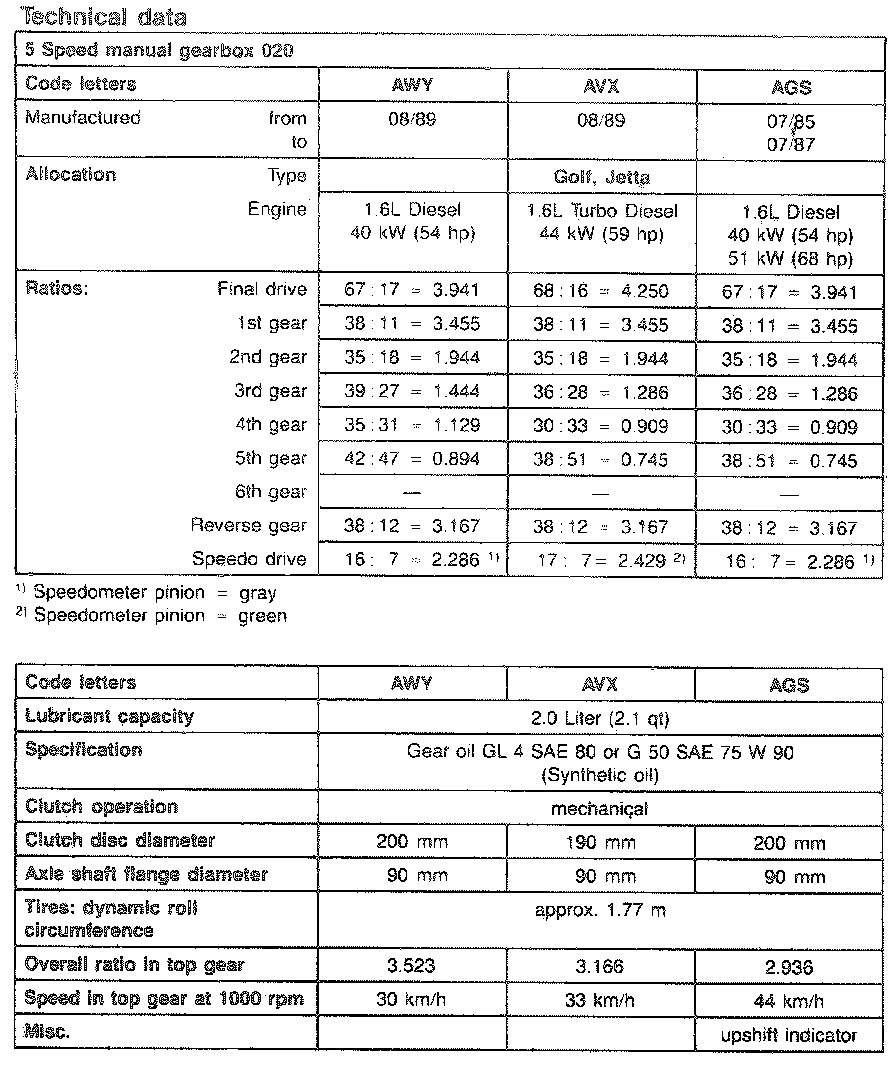

5 Speed Manual Gearbox Specifications (020):





Final Drive Torque Specifications:





Torque Specifications:

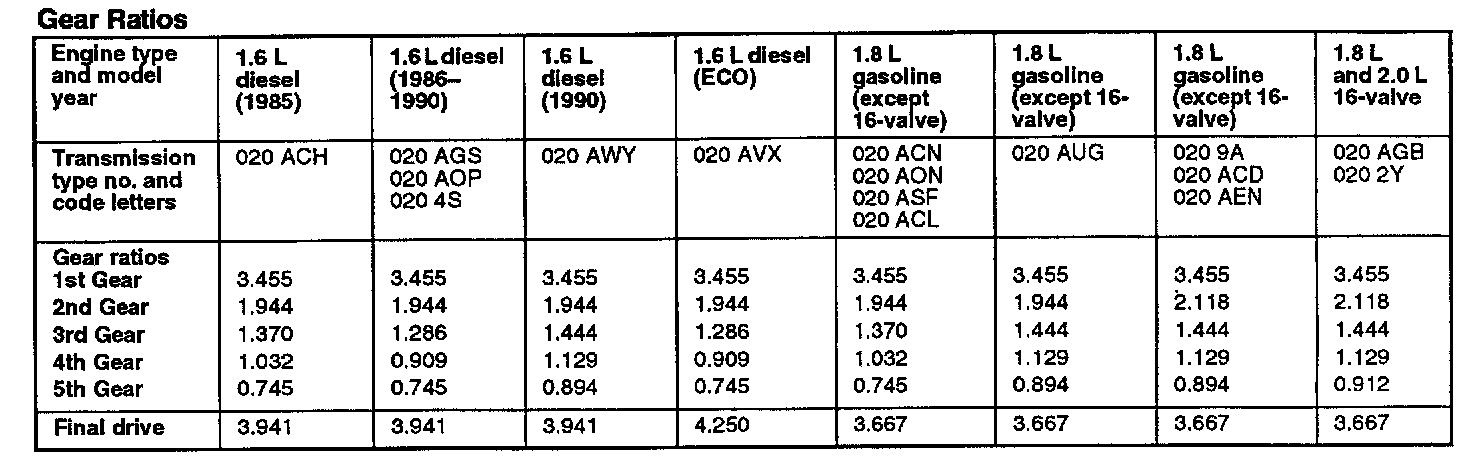

Gear Ratio Specifications:





Clutch And Synchronizer Ring Specifications:





Pinion Shaft And Final Drive Bearing Torque Specifications:
