Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

Temperature sensor II, checking

Note: Temperature sensor II in coolant thermostat housing supplies control unit with information for starting and warm-up enrichment


- Check temperature and resistance of temperature sensor II

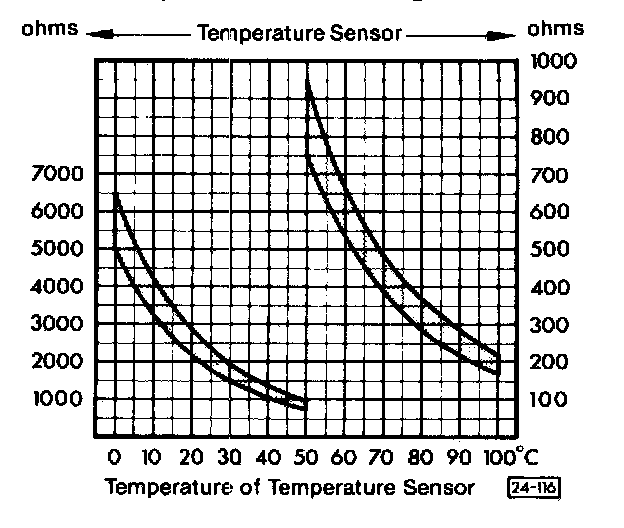

Check specifications, refer to chart:
