Home
>>
Volkswagen
>>
1987
>>
Vanagon Syncro AWD L4-2109cc 2.1L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
System Component Layout
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

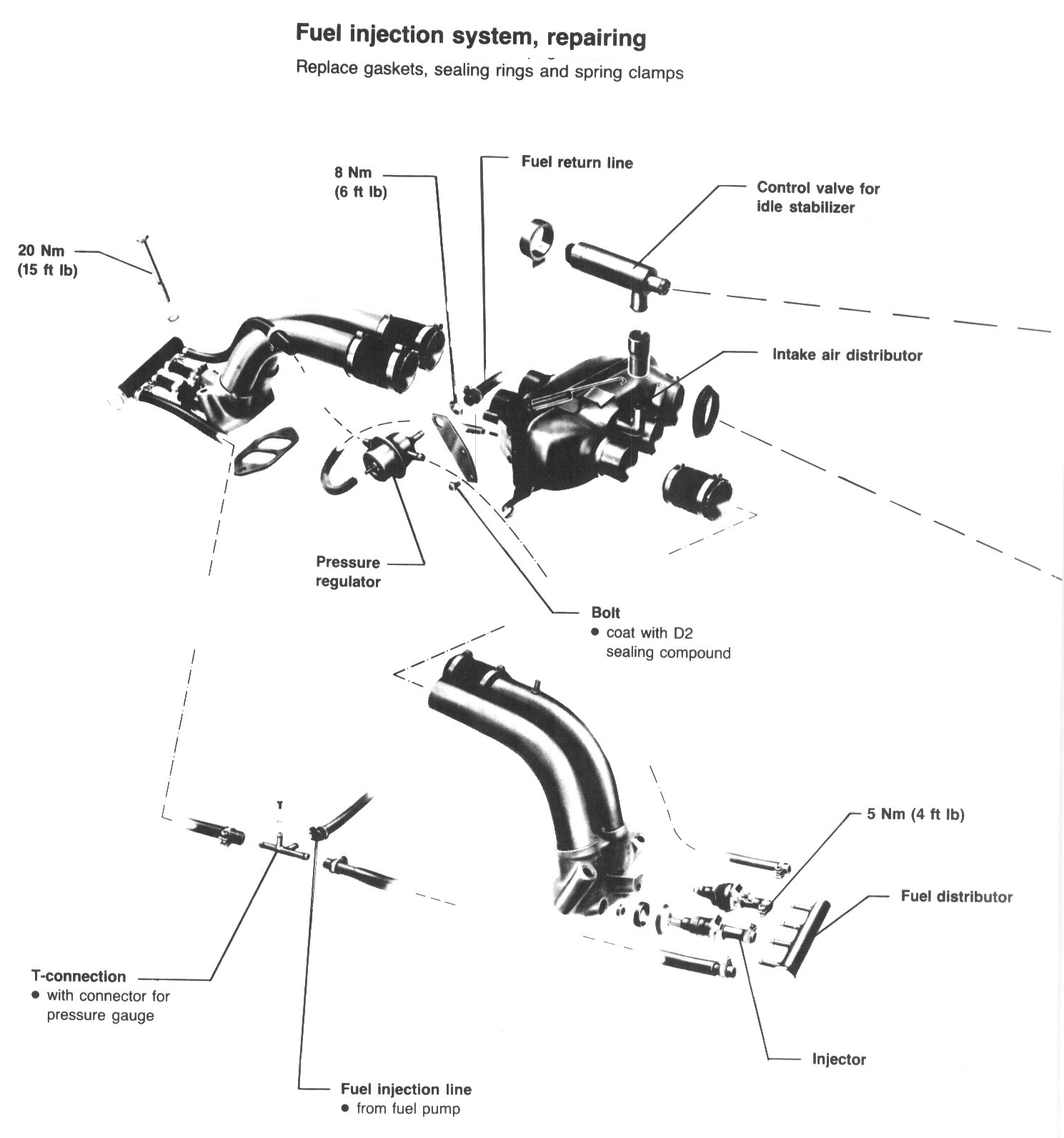

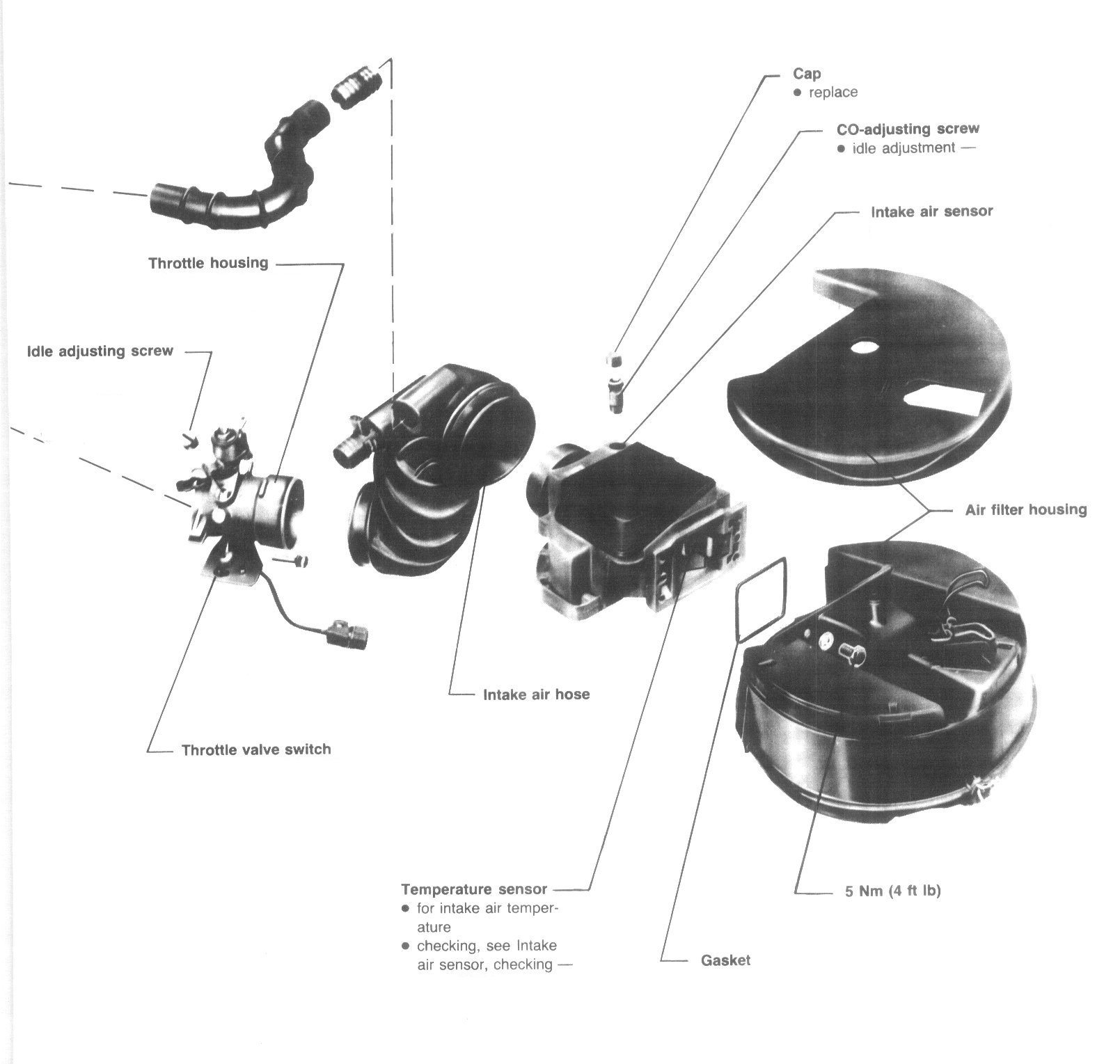

System Component Layout
