Powertrain Management: Diagrams

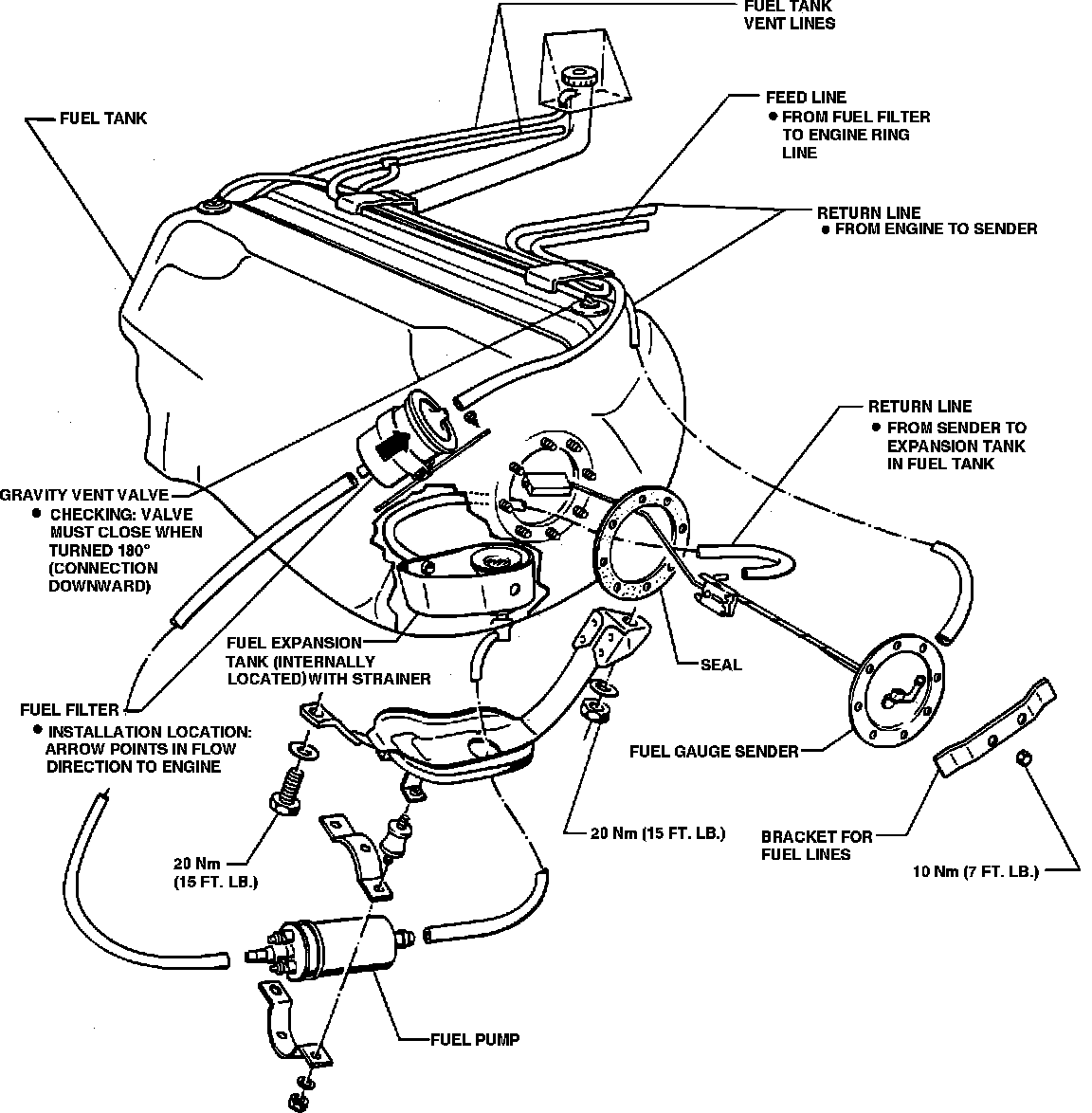

Fuel Tank And Components:





FUEL TANK DIAGRAM

Charcoal Canister And Shut-Off Valve:





EVAPORATIVE EMISSION DIAGRAM

Positive Crankcase Ventilation (PCV) Layout:





POSITIVE CRANKCASE EMISSION SYSTEM DIAGRAM
