Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C Fuse | Above fuse/relay panel. |
| A/C Relay Fuse | Behind left pillar cover. |
| Evaporator Fan Fuse | Behind left pillar cover. |

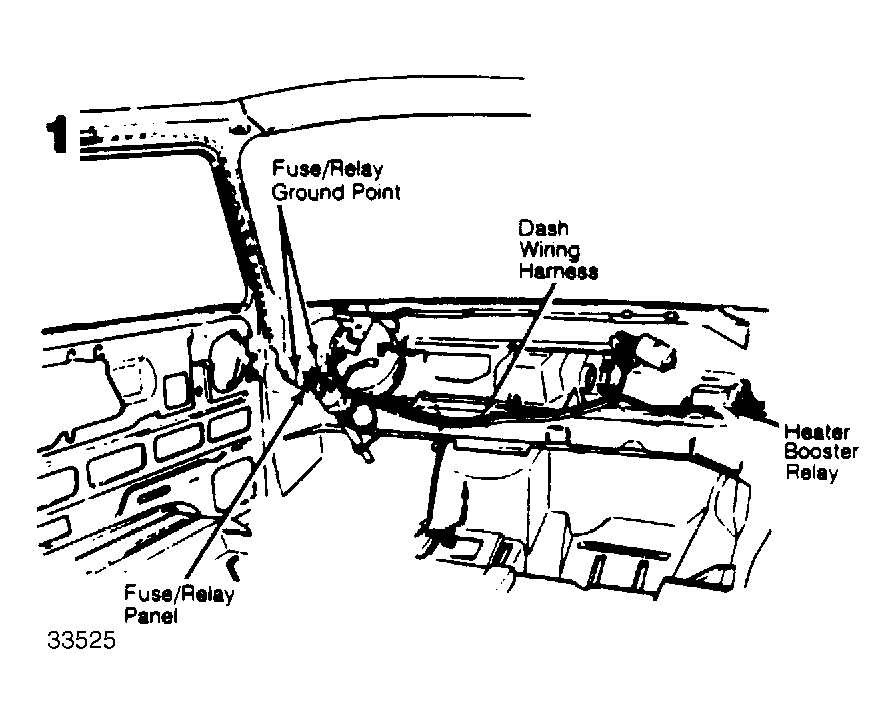

| Fuse/Relay Panel | Under instrument cluster, on left side of steering column. See Figure & Figure . |
| Power Window Fuse | Above fuse/relay panel. |
| Radiator Fan 3rd Speed Fuse | Behind left dash vent. See Figure. |
