Engine Sensors & Switches: Notes

NOTE: For engine sensors and switches not covered in this article, see the ADJUSTMENTS article. For component locations, See Fig 1 .

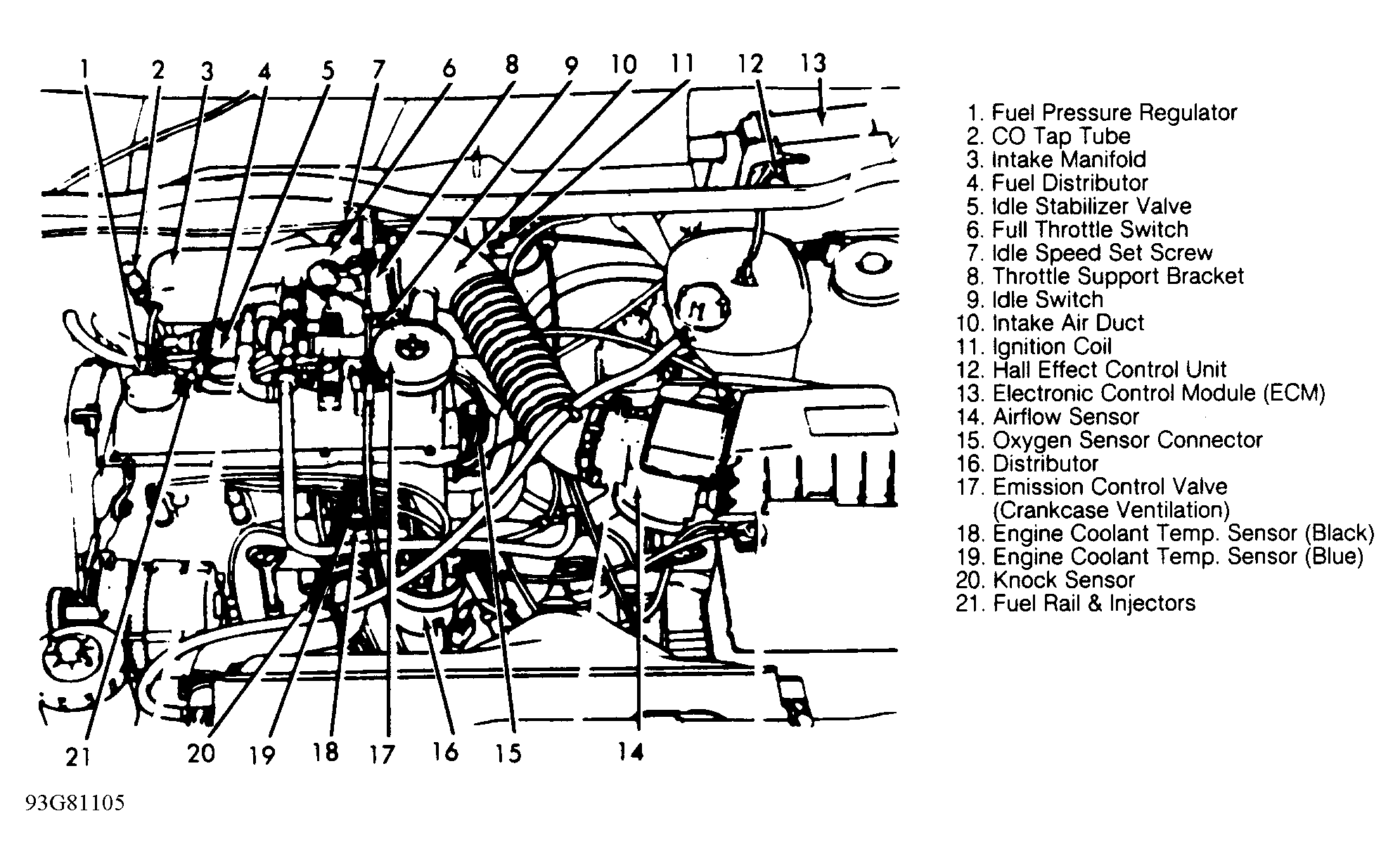

Fig 1: Component Locations (Fox 1.8L - Digifant II)
G93G81105Courtesy of VOLKSWAGEN UNITED STATES, INC.
