Driving Out

Drive spring pin for engaging lever out only so far as to remove the selector shaft. See Fig 1 .

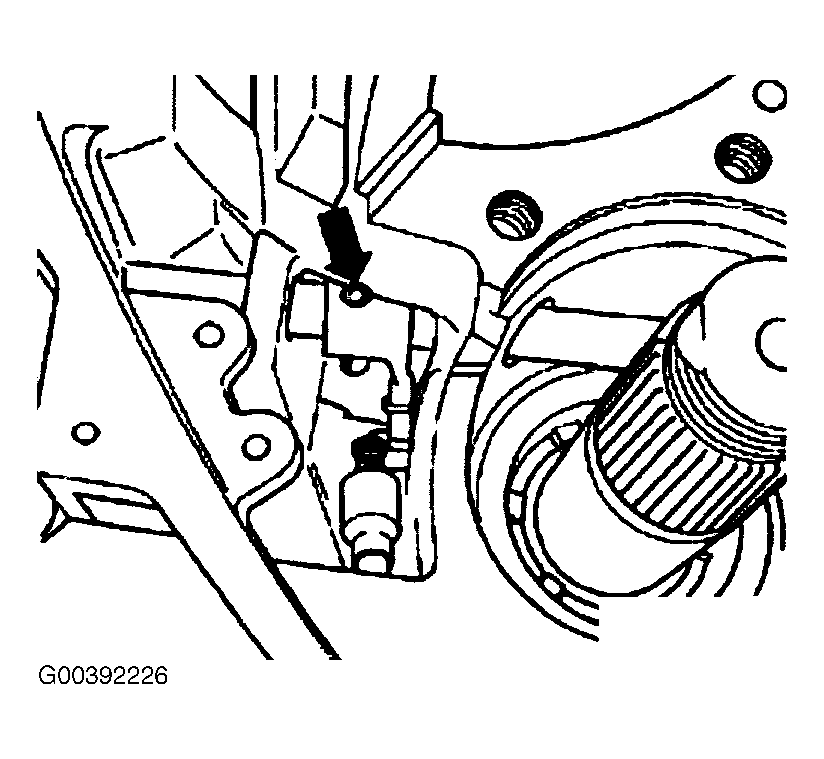

Fig 1: Driving Spring Pin Out & In
G00392226Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE: Otherwise spring pin of engaging lever may drop into planetary transmission.
