01P Automatic Transmission

CODE LETTERS, APPLICATION, RATIOS, EQUIPMENT

- 01P Transmission -

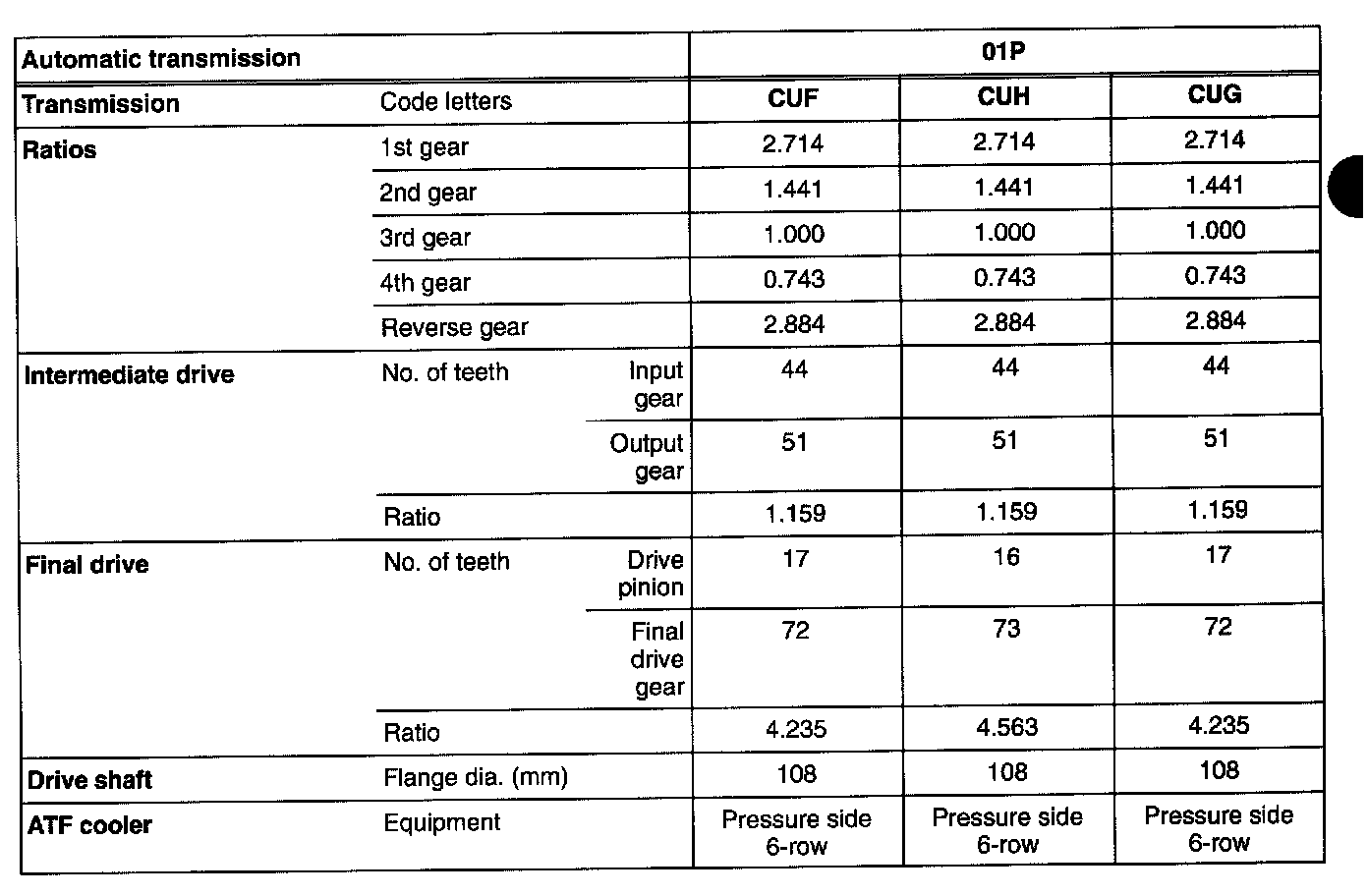

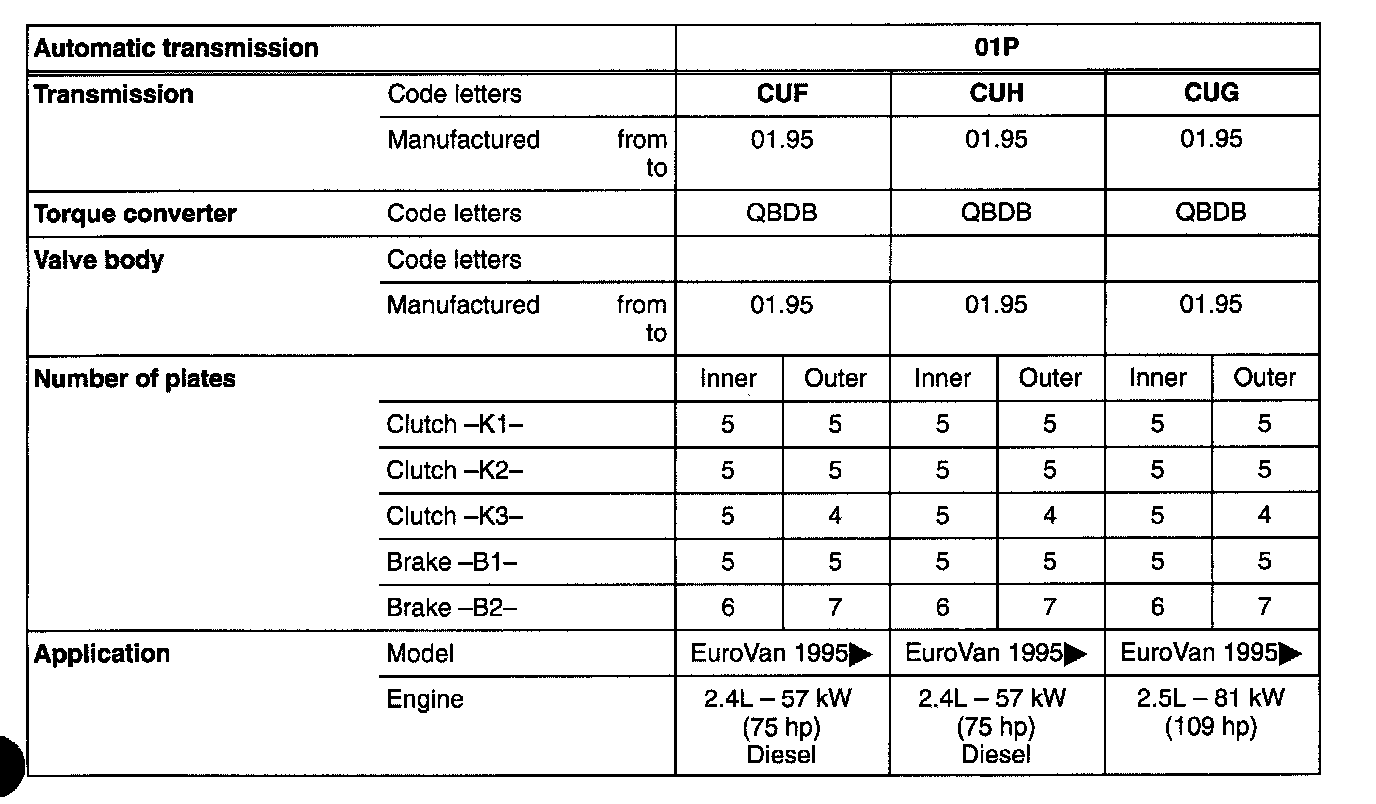

Torque Converter Code Letter CUF, CUH, CUG:






Ratios Code Letter CFU, CUH, CUG:

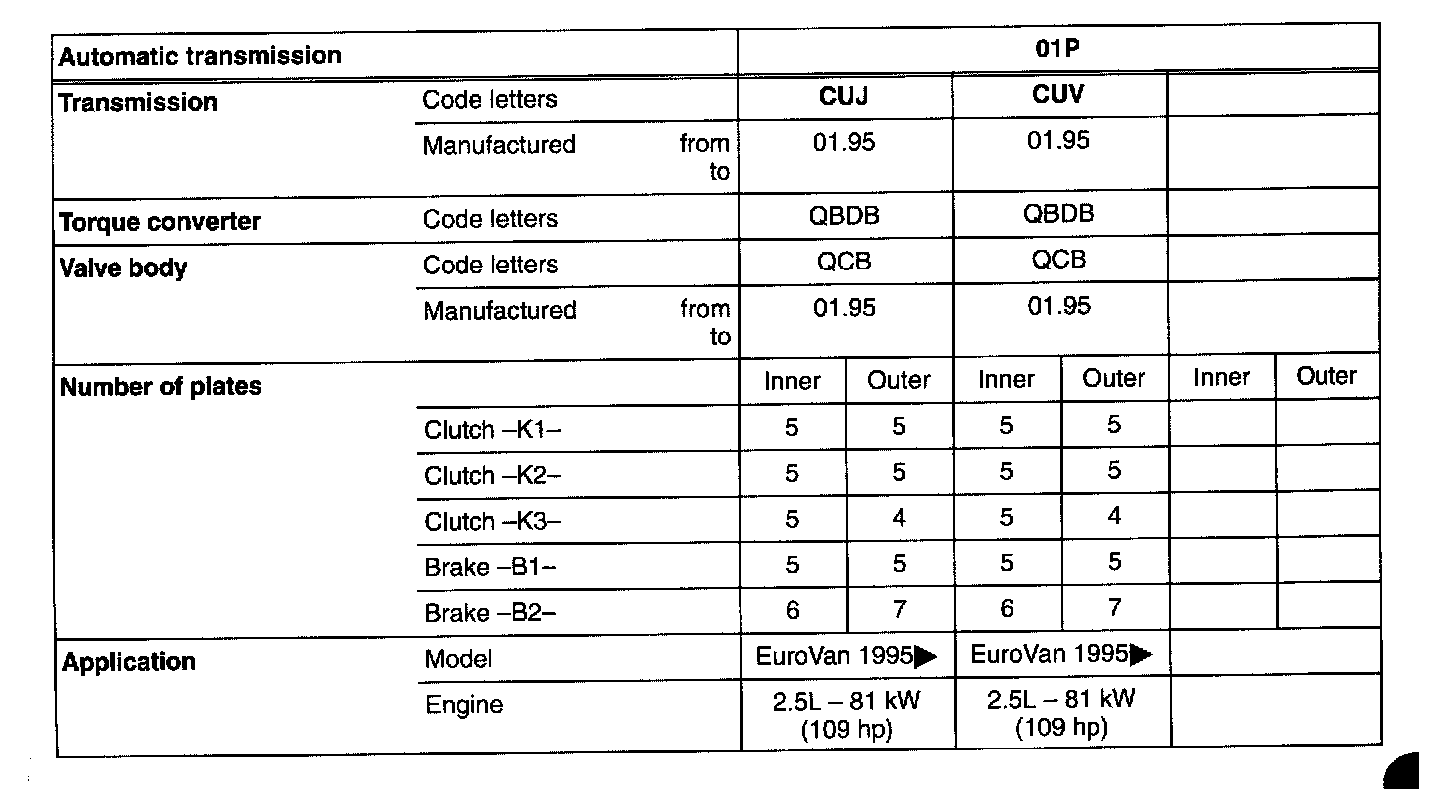

Torque Converter Code Letter CUJ, CUV:






Ratios Code Letter CUJ, CUV:
