Component Locations
COMPONENT LOCATIONS
Component
Location
Central Locking System Control Module
Fig 1
Behind Instrument Cluster
Door Lock Actuators
Fig 1
Behind Door Trim

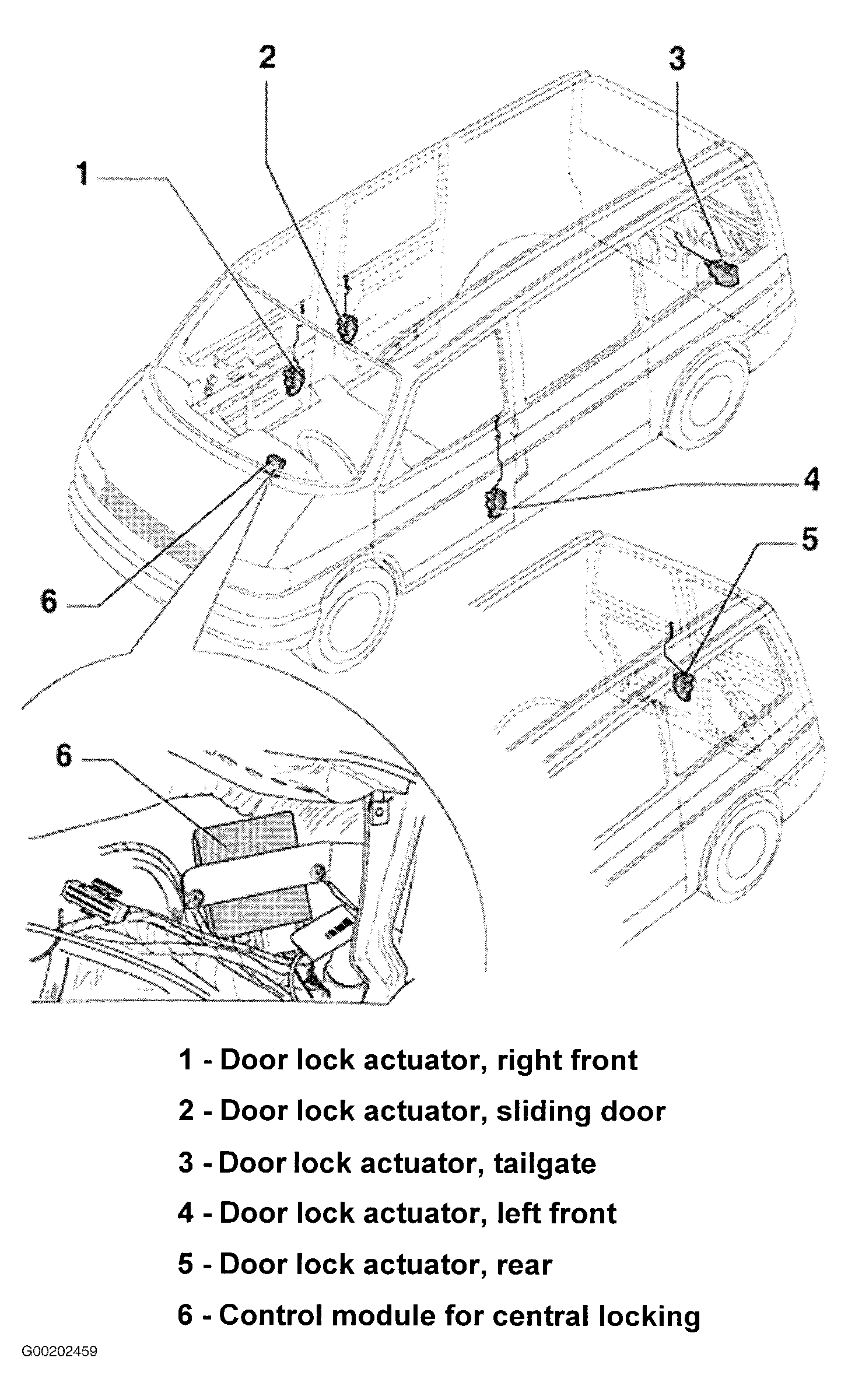

Fig 1: Locating Central Locking System Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.
