Door Module

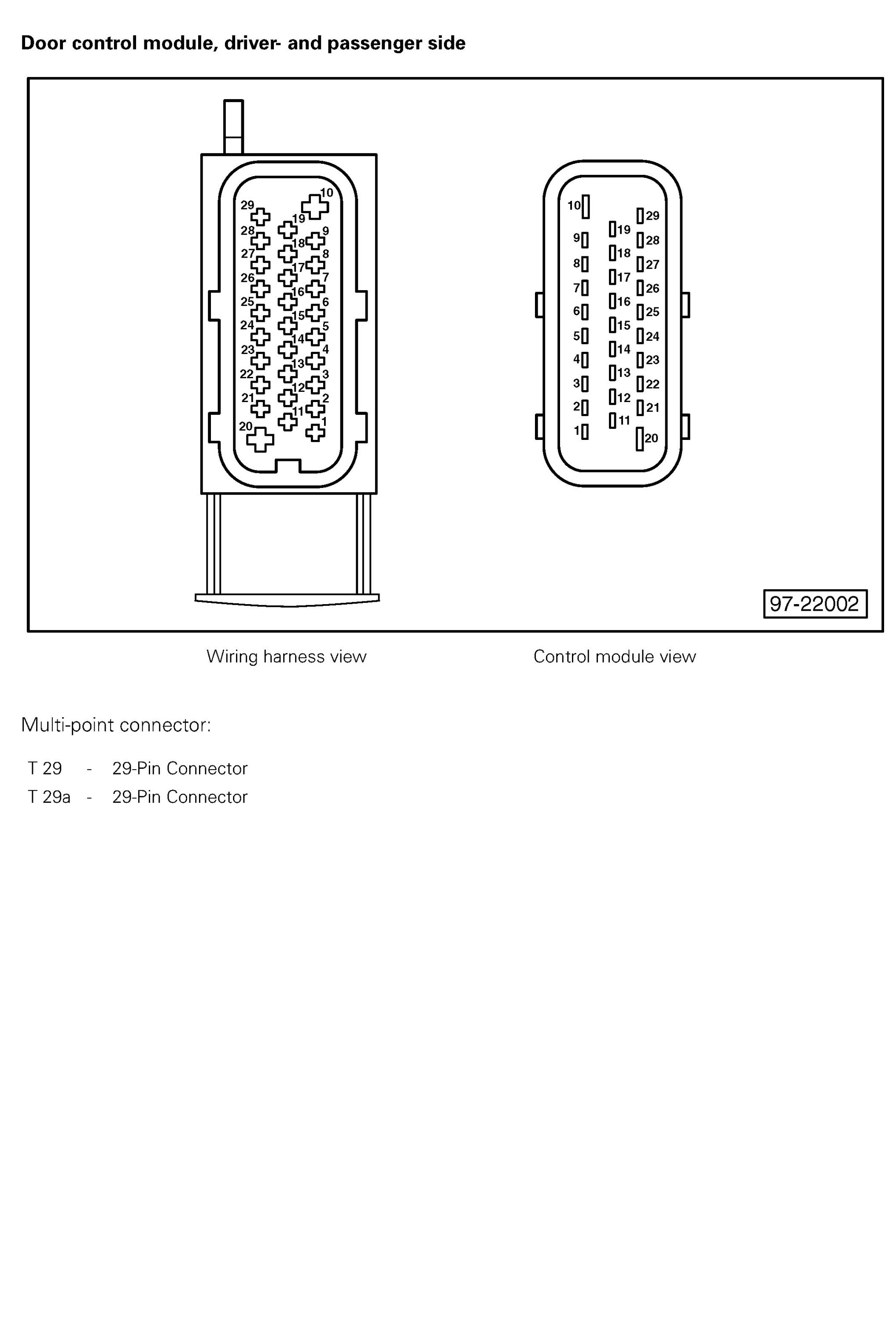

Door Control Module, Driver And Passenger Side:

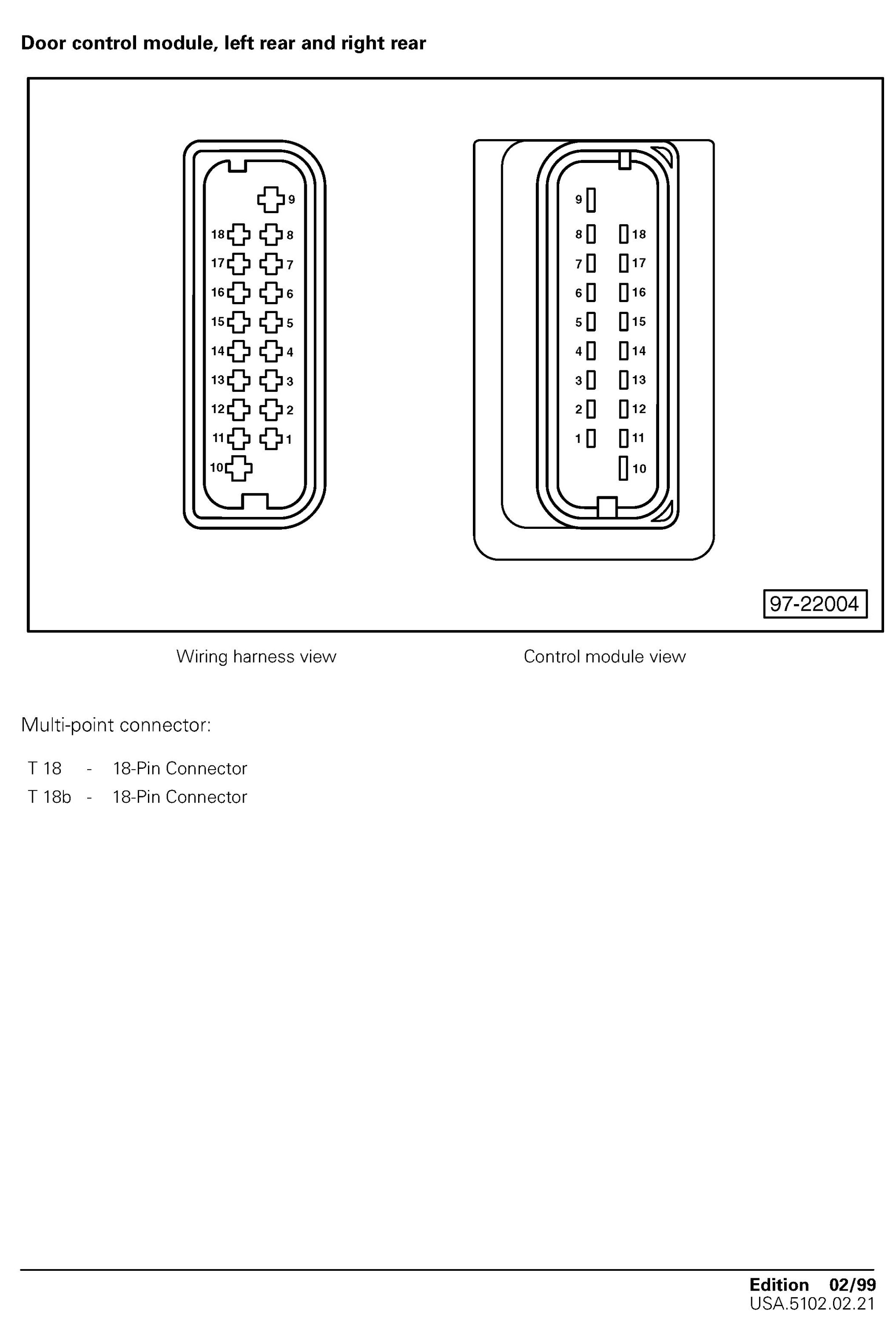

Door Control Module, Left And Right Rear:
Control Modules - Connector Pin-out
