J271 - Motronic Engine Control Module (ECM) Power Supply Relay

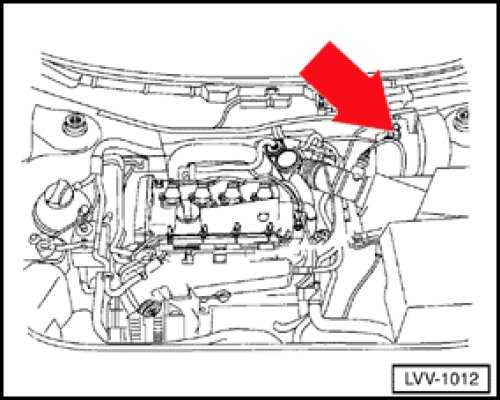

J271 - Motronic Engine Control Module (ECM) power supply relay (shown on 1.8 liter)







- in engine compartment, left side, in protective housing

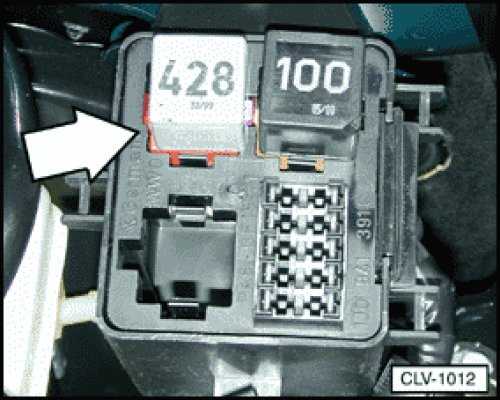

- production control number 428
