Display group 2

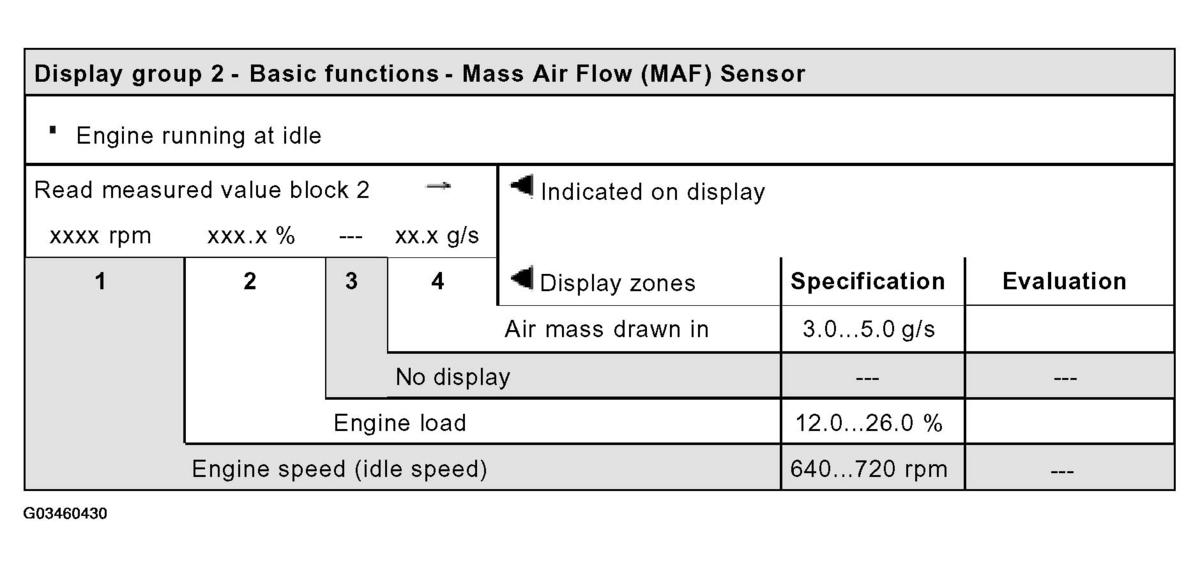

Fig 1: Display Group 2 - Basic Functions Mass Air Flow (MAF) Sensor

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: In the previous graphic, for Evaluation, refer to:

Note on display zone 2:

The engine load at idling is given as the specification.

Note on display zone 4:

Displayed is the air mass measured by the Mass Air Flow (MAF) Sensor -G70-.
