Display group 3

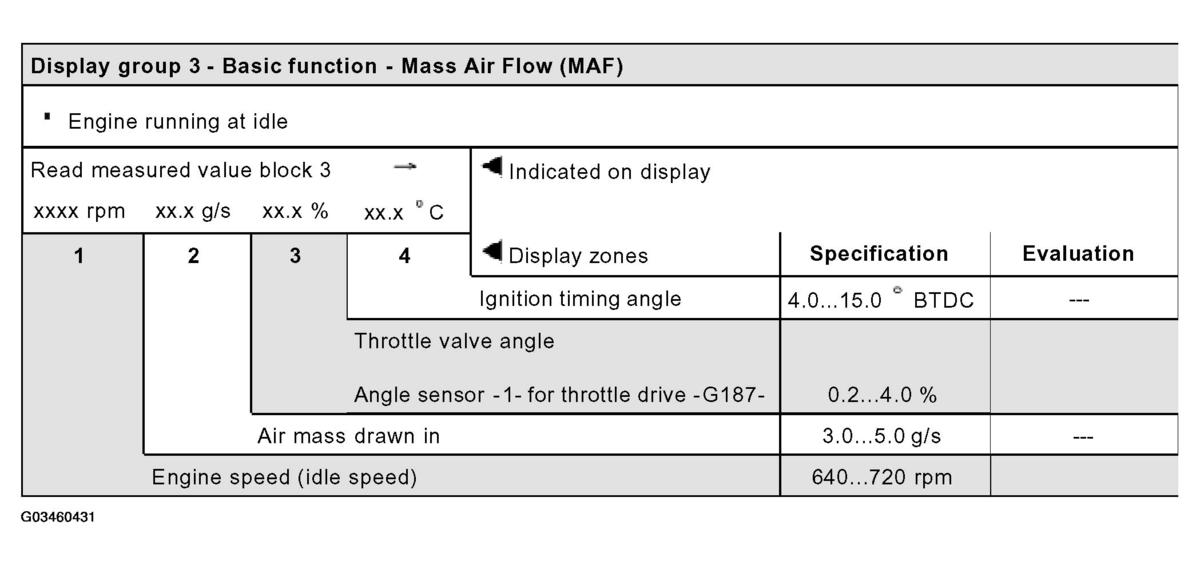

Fig 1: Display Group 3 - Basic Functions Mass Air Flow (MAF) Sensor

G03460431

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: In the previous graphic, for Evaluation, refer to:

Note on display zone 2:

Displayed is the air mass measured by the Mass Air Flow (MAF) Sensor -G70-.

Note on display zone 3:

Display values must be approx. 100% when accelerator pedal is fully depressed.
