Display group 4

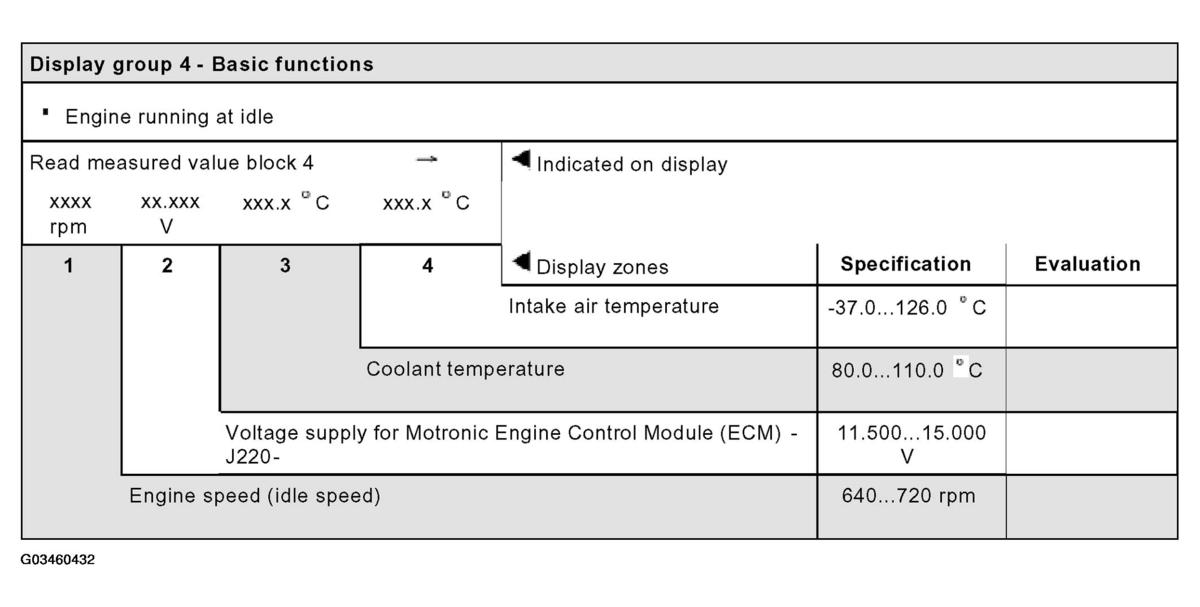

Fig 1: Display Group 4 - Basic Functions

G03460432

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: In the previous graphic, for Evaluation, refer to:

Note on display zone 4:

The total temperature range is given as the specification. The displayed value must be above ambient temperature.
