Display group 6

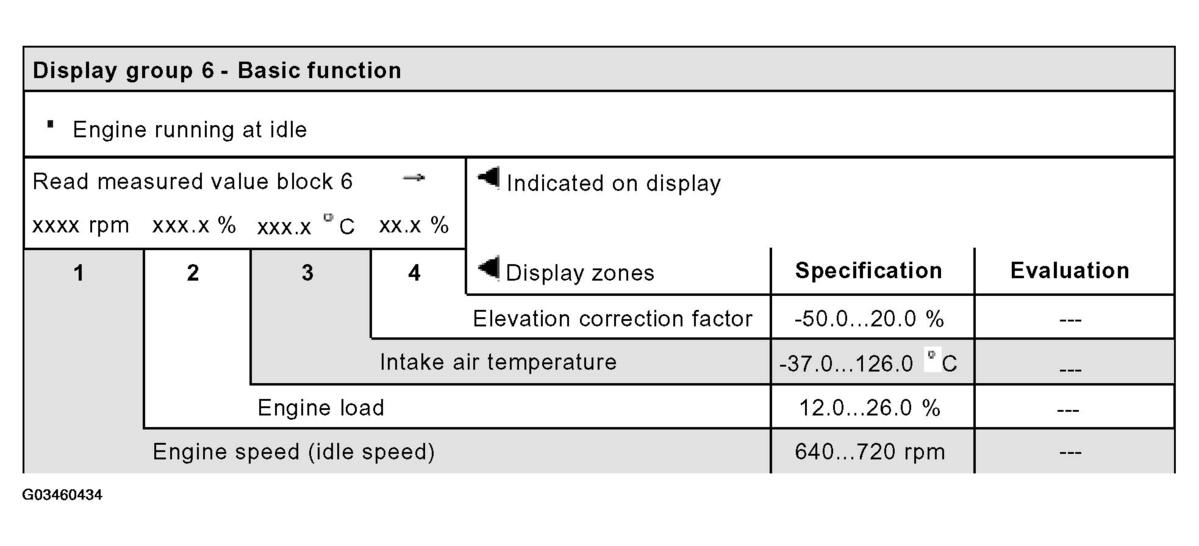

Fig 1: Display Groups 6 - Basic Functions

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: In the previous graphic, for Evaluation, refer to:

Note on display zone 2:

The engine load at idling is given as the specification.

Note on display zone 3:

The total temperature range is given as the specification. The displayed value must be above ambient temperature.
