Display group 10

Note on display zone 2:

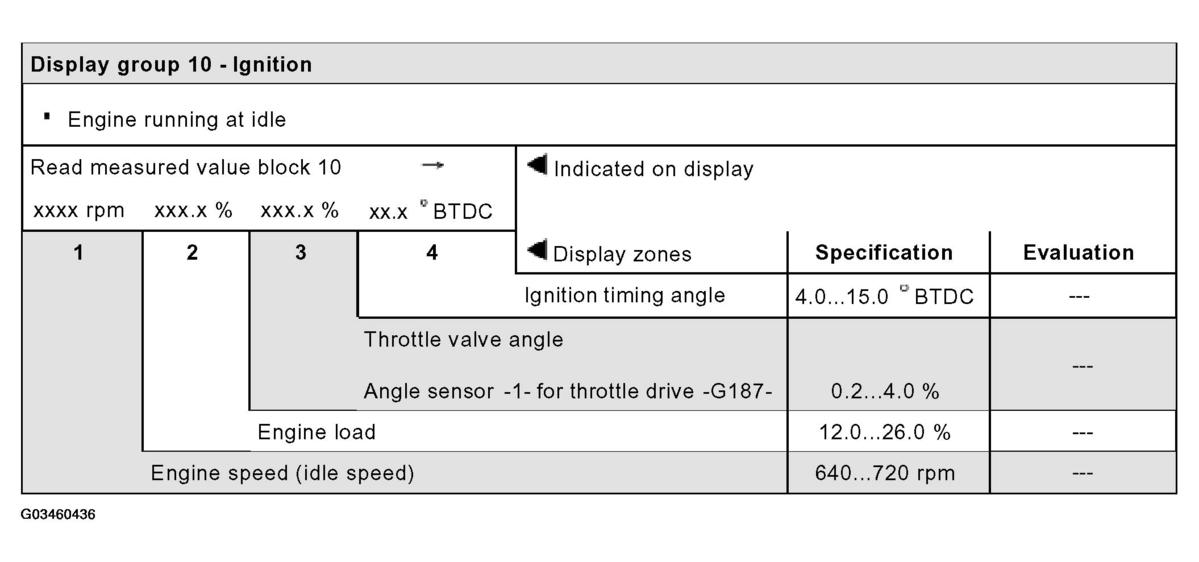

Fig 1: Display Group 10 - Ignition

G03460436

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: In the previous graphic, for Evaluation, refer to:

The engine load at idling is given as the specification.

Note on display zone 3:

Display values must be approx. 100 % when accelerator pedal is fully depressed.
