Display group 14

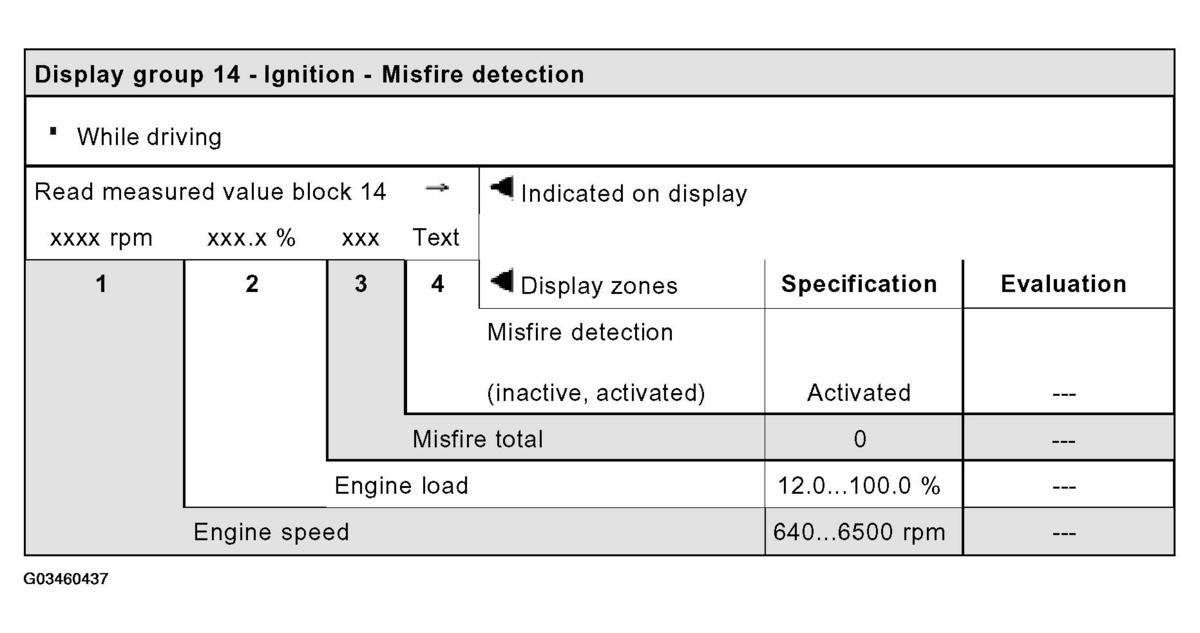

Fig 1: Display Group 14, Misfire Detection

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: In the previous graphic, for Evaluation, refer to:

Evaluating display group 14, display zone 3 - Total number of misfires

Note on display zone 3:

The total number of detected misfires is displayed here. No distinction is made over what period of time the misfire was detected. Therefore check the misfire detection during a road test. See MISFIRE DETECTION, CHECKING .
