Display group 15

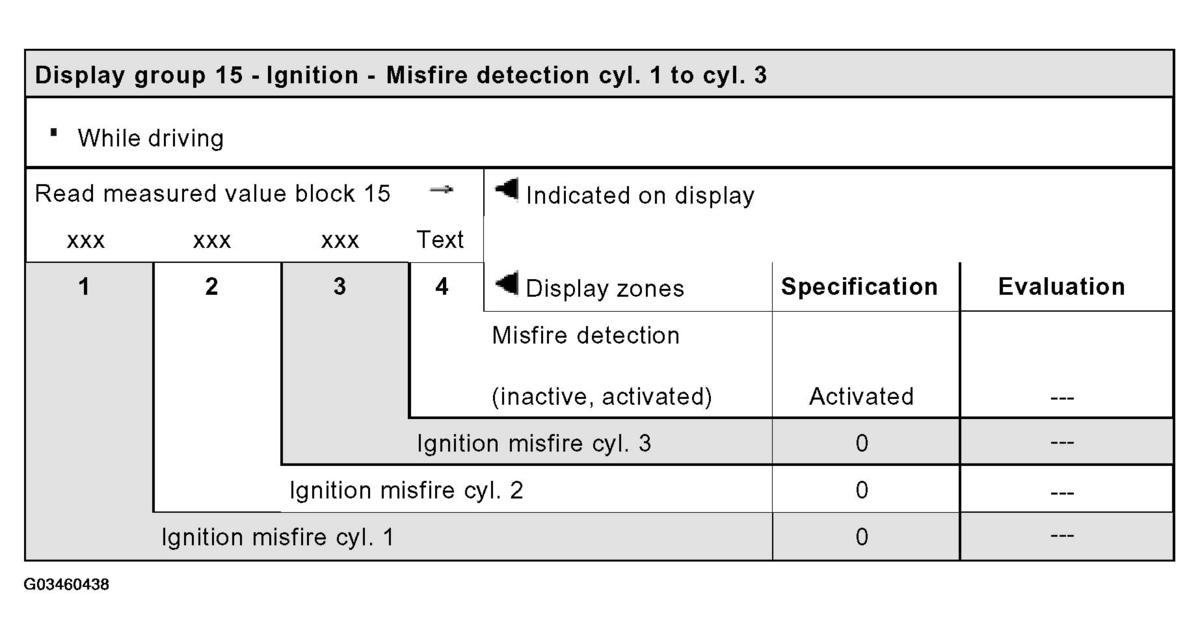

Fig 1: Display Group 15 - Ignition-Misfire Detection Cyl. 1 To Cyl. 3
Courtesy of VOLKSWAGEN OF AMERICA, INC.
NOTE:
In the previous graphic, for Evaluation, refer to:
Evaluating display group 15, display zones 1 to 3 or display group 16, display zones 1 to 3 - Ignition misfires cyl. 1 to cyl. 6
