Display group 21

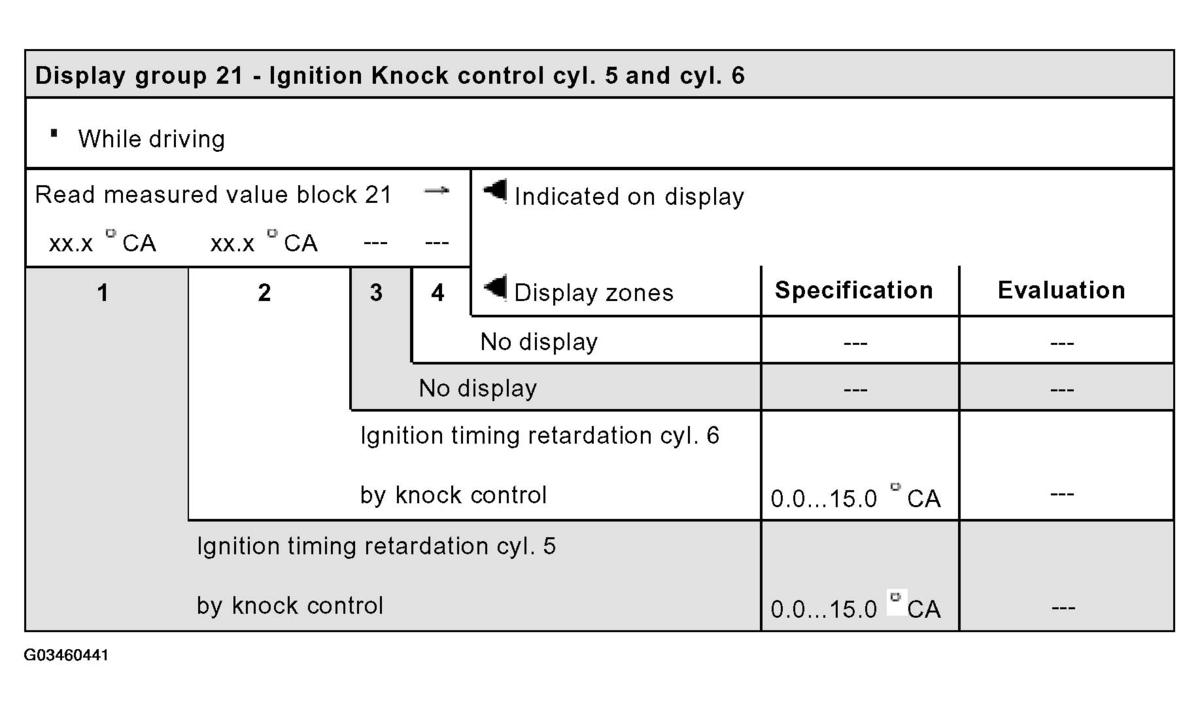

Fig 1: Display Group 21 - Ignition Knock Control Cyl. 5 To Cyl. 6

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: In the previous graphic, for Evaluation, refer to:

Notes on display zones 1 to 2:

The displayed value should be 0.0 ° CA at idling.
