Display group 22

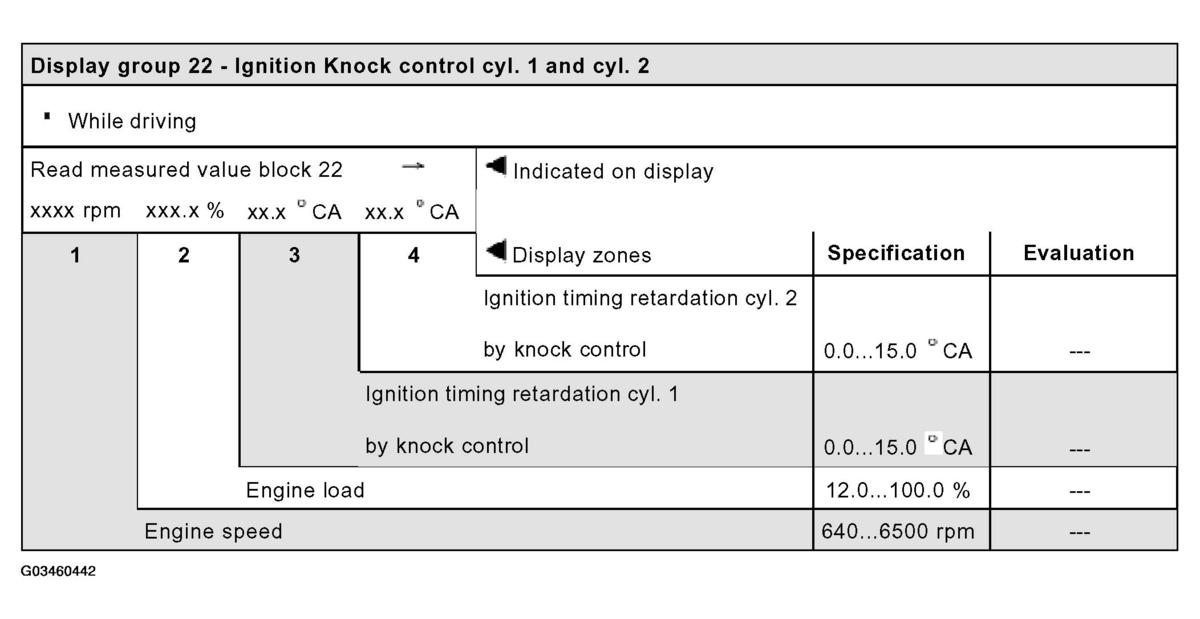

Fig 1: Display Group 22 - Ignition Knock Control Cyl. 1 and Cyl. 2

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: In the previous graphic, for Evaluation, refer to:

Notes on display zones 3 and 4:

The displayed value should be 0.0 CA at idling.
