Display group 125

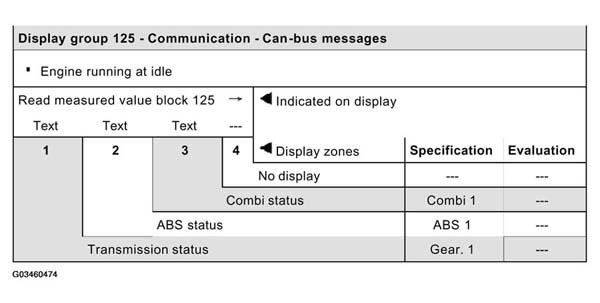

Fig 1: Display Group 125 - Communication, Can-Bus Message
G03460474Courtesy of VOLKSWAGEN OF AMERICA, INC.

Note on display group 125:

Specification = 1; control modules with active Can -bus are displayed.
