Display group 30

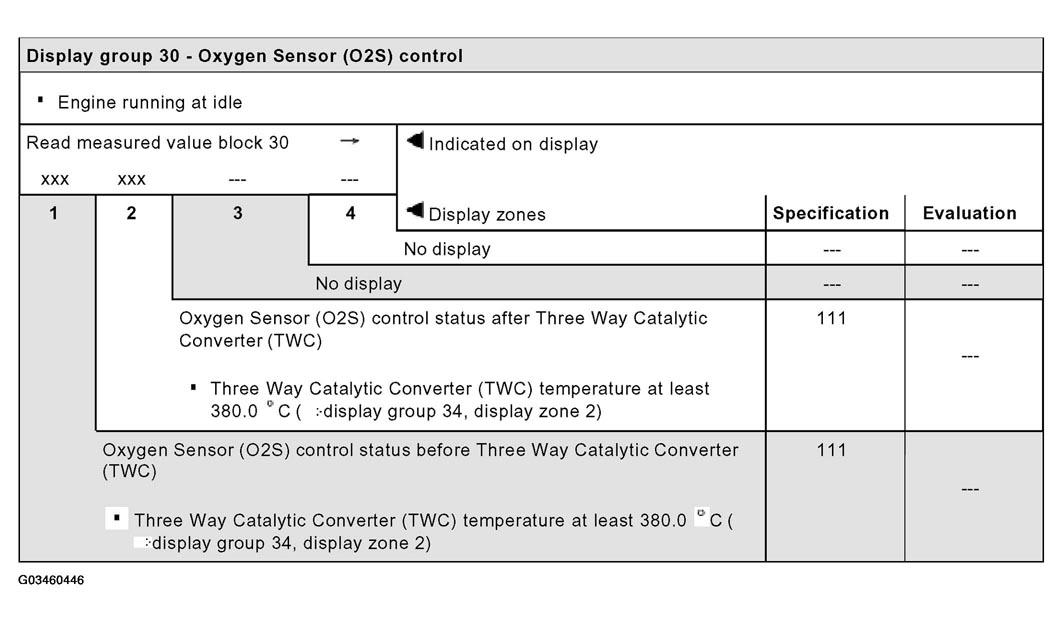

Fig 1: Display Group 30 - Oxygen Sensor (O2S) Control

G03460446

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: In the previous graphic, for Evaluation, refer to:

Significance of characters in 3 digit number block, display zones 1 and 2 - Status of Oxygen Sensor (O2S) control before and after Three Way Catalytic Converter (TWC)

Note on display zone 2:

The 3rd character in the digit number block will not be set to 1 until in part load range.
