System
>>
2.8L - On Board Diagnostic (OBD) - BDF (A4 Platform)
>>
On Board Diagnostic (OBD)
>>
Measured value (data) blocks
>>
Measured value blocks, display groups 30...33, 99 - Oxygen Sensor (O2S) control, evaluating
>>
Display group 36
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Display group 36

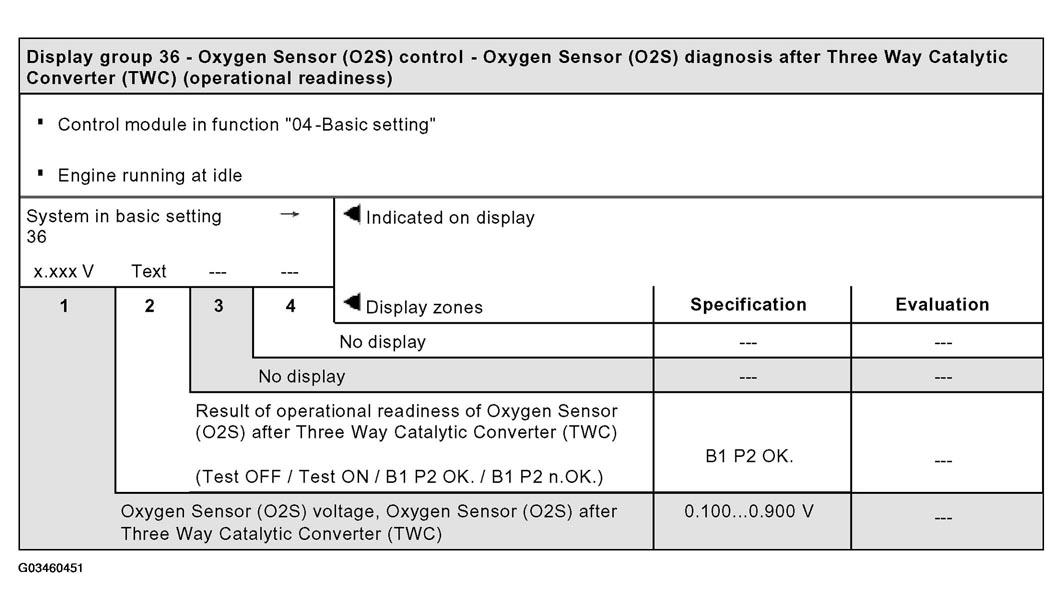

Fig 1: Display Group 36 - Oxygen Sensor (O2S) Voltage, xygen Sensor (O2S) After Three Way Catalytic Converter
Courtesy of VOLKSWAGEN OF AMERICA, INC.
NOTE:
In the previous graphic, for Evaluation, refer to:
Evaluating display group 36, display zone 2 - Diagnosis of Oxygen Sensor (O2S) after Three Way Catalytic Converter (TWC)
Evaluating display group 36, display zone 1 - Oxygen Sensor (O2S) voltage, Oxygen Sensor (O2S) after Three Way Catalytic Converter (TWC)
