Display group 41

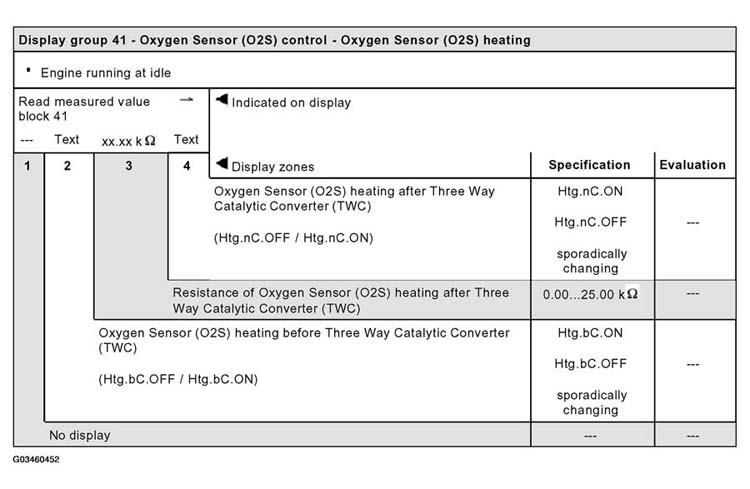

Fig 1: Display Group 41 - Oxygen Sensor (O2S) Control, Oxygen Sensor (O2S) Heating

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: The Oxygen Sensor (O2S) heating may be switched on or off depending on the operating conditions of the engine, therefore the display in display zones 2 or 4 may show "Htg.b(a)C.ON" or alternating from "Htg.b(a)C.ON" to Htg.b(a) C.OFF".
