Display group 43

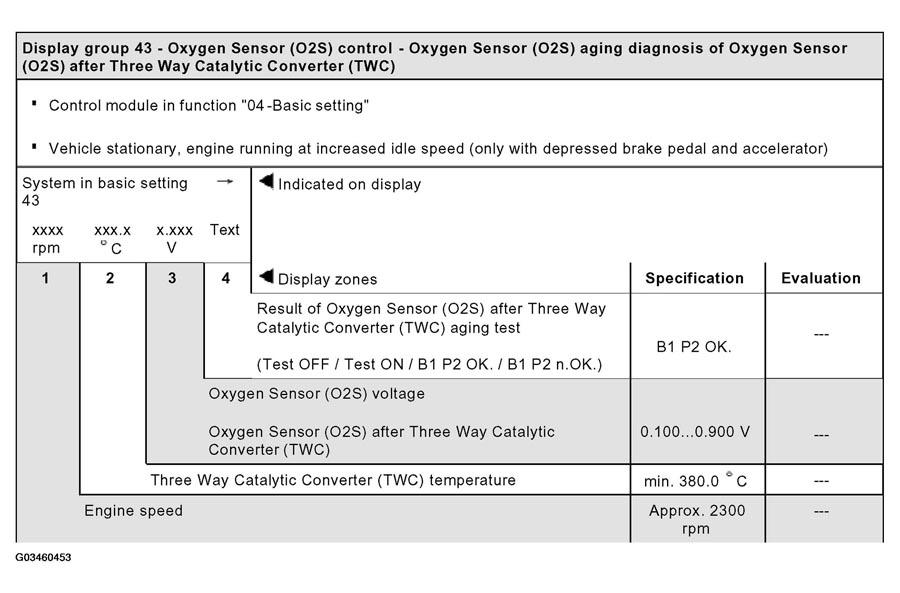

Fig 1: Display Group 43 - Oxygen Sensor (O2S) Control, Oxygen Sensor (O2S) Aging Diagnosis Of Oxygen Sensor (O2S) After Three Way Catalytic Converter

G03460453

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: In the previous graphic, for Evaluation, refer to:

Evaluation of display group 43, display zone 4 - Oxygen Sensor (O2S) diagnosis - Oxygen Sensor (O2S) aging after Three Way Catalytic Converter (TWC)
Evaluating display group 36, display zone 1 - Oxygen Sensor (O2S) voltage, Oxygen Sensor (O2S) after Three Way Catalytic Converter (TWC)

Note on display zone 2:

Value calculated from engine speed and engine load.
