Display group 77

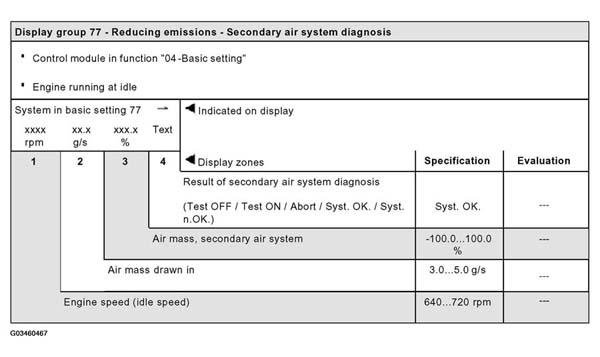

Fig 1: Display Group 77 - Reducing Emission, Secondary Air System
Courtesy of VOLKSWAGEN OF AMERICA, INC.
NOTE:
In the previous graphic, for Evaluation, refer to:
Evaluating display group 77, display zone 4 - Secondary air system diagnosis
Evaluating display group 2, display zone 4 - Mass Air Flow (MAF)
Evaluating display group 1, display zone 1 - Engine speed (idle speed)
Note on display zone 3:
The total range is given.
