Steering Column, Removing And Installing: Installing: Notes

New replacement steering columns are secured with transportation protection - 6 -.

This transport protection - 6 - must be removed after installing the steering column in the vehicle.

The shear head bolt - 10 - and the Pin - 11 - must be installed on new steering columns, which have been supplied as a replacement part.

• Tighten shear head bolt - 10 -  until head shears off.

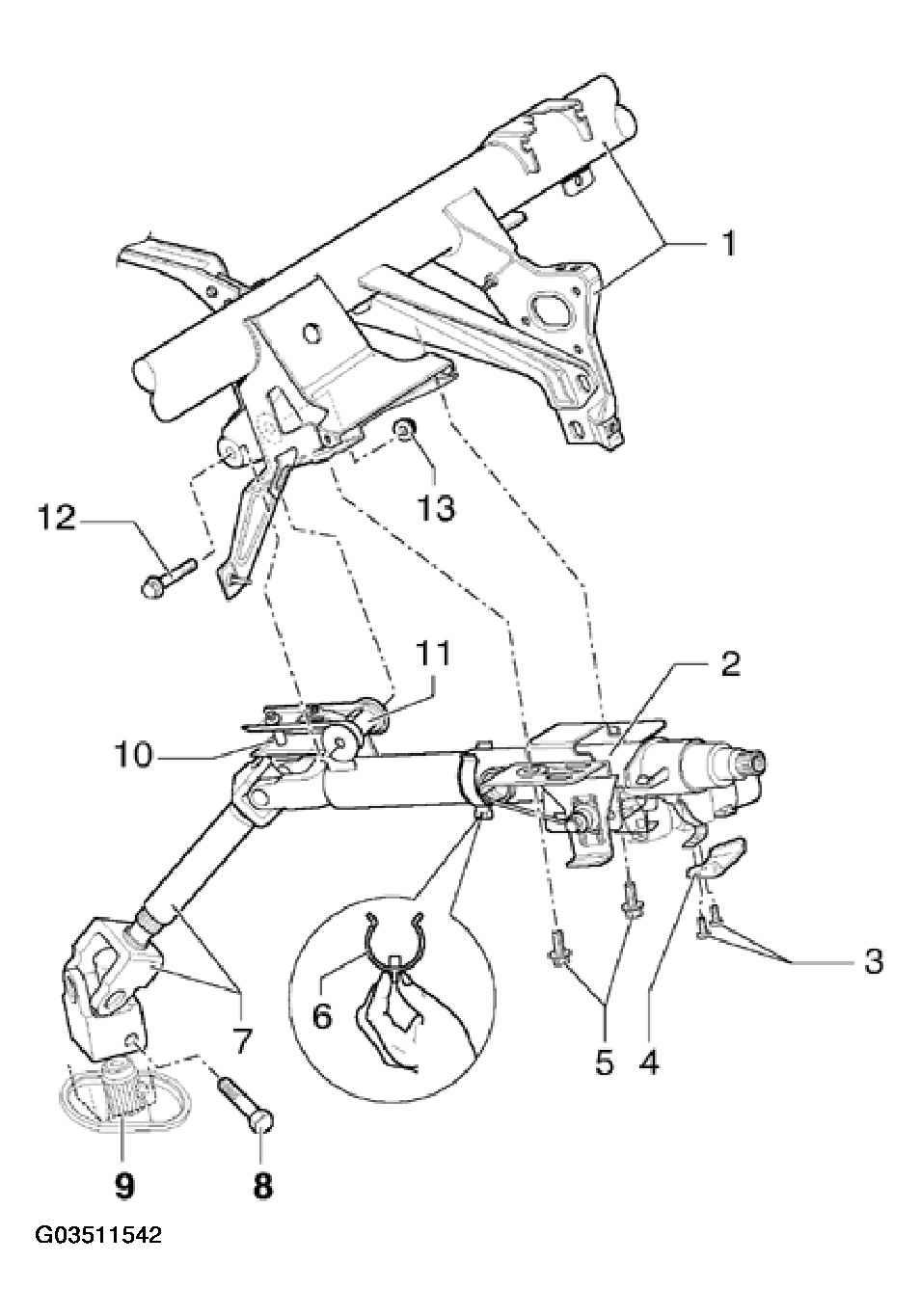

Fig 1: Installing Steering Column Hex Bolts
Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Install steering column with preassembled steering lock housing to cross member.
• Install hex bolts - 5 -  .

  When a steering column from manufacturer Presta is installed, the bolts must be secured with locking fluid D 000 600.

  Identifying steering column, see IDENTIFYING STEERING COLUMNS

• Install hex bolt - 12 -  .
• Install nut - 13 -  and tighten to 10 N.m (7.3 ft. lb).
• Now tighten bolts - 5 -  to 25 N.m (18.4 ft. lb).
• Remove transportation securing device - 6 -  .
• Install universal joint/shaft on steering pinion
• Tighten bolt - 8 -  to 30 N.m (22 ft. lb).

1. Steering column cross member
2. Steering column
3. Bolt
4. Handle
5. Hex bolt, 22 N.m (16.2 ft. lb)
6. Transportation securing device
7. Steering column universal joint/shaft
8. Hex bolt, 30 N.m (22 ft. lb)
9. Steering gear pinion
10. Shear head bolt
11. Pin
12. Hex bolt
13. Hex nut, 10 N.m (7.3)

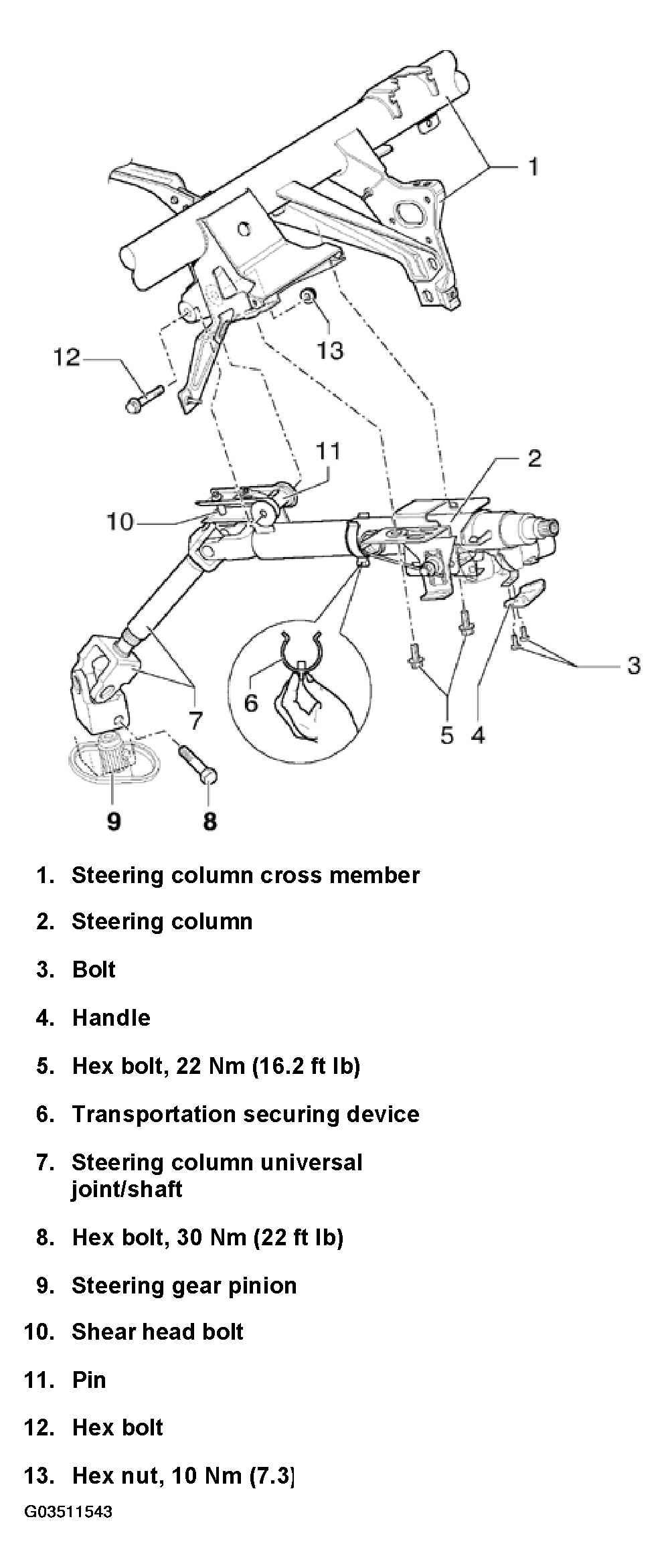

Fig 2: Identifying Steering Column Cross Member With Torque Specifications

Courtesy of VOLKSWAGEN OF AMERICA, INC.
