Accelerator Pedal Module Connector, Disconnecting And Connecting

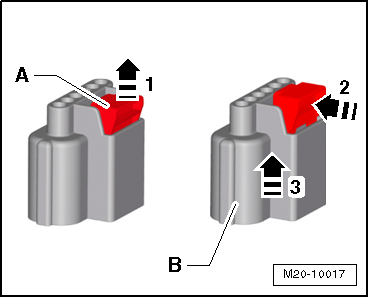

Fig 1: Disconnecting connector 8K0 973 706

-- Pull the slider -A- (red) all the upward in direction of -arrow 1- .

-- Push the slide in direction of -arrow 2- and remove the connector housing -B- upward in direction of -arrow 3- .

The slider -A- stays in the upper position.

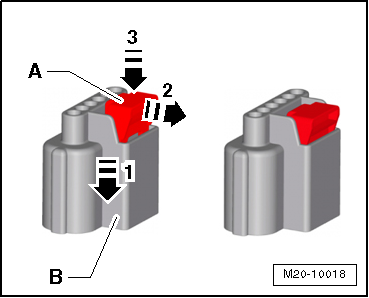

Fig 2: Connecting connector 8K0 973 706

-- Push the connector housing -B- all the way down in direction of -arrow 1- .

-- Push the slider in direction of -arrow 2- and downward in direction of -arrow 3- .

The slider -A- can be pushed down only if the connector housing was pushed >>all the way down<< .

-- Pull on the connector to make sure it is secure.
